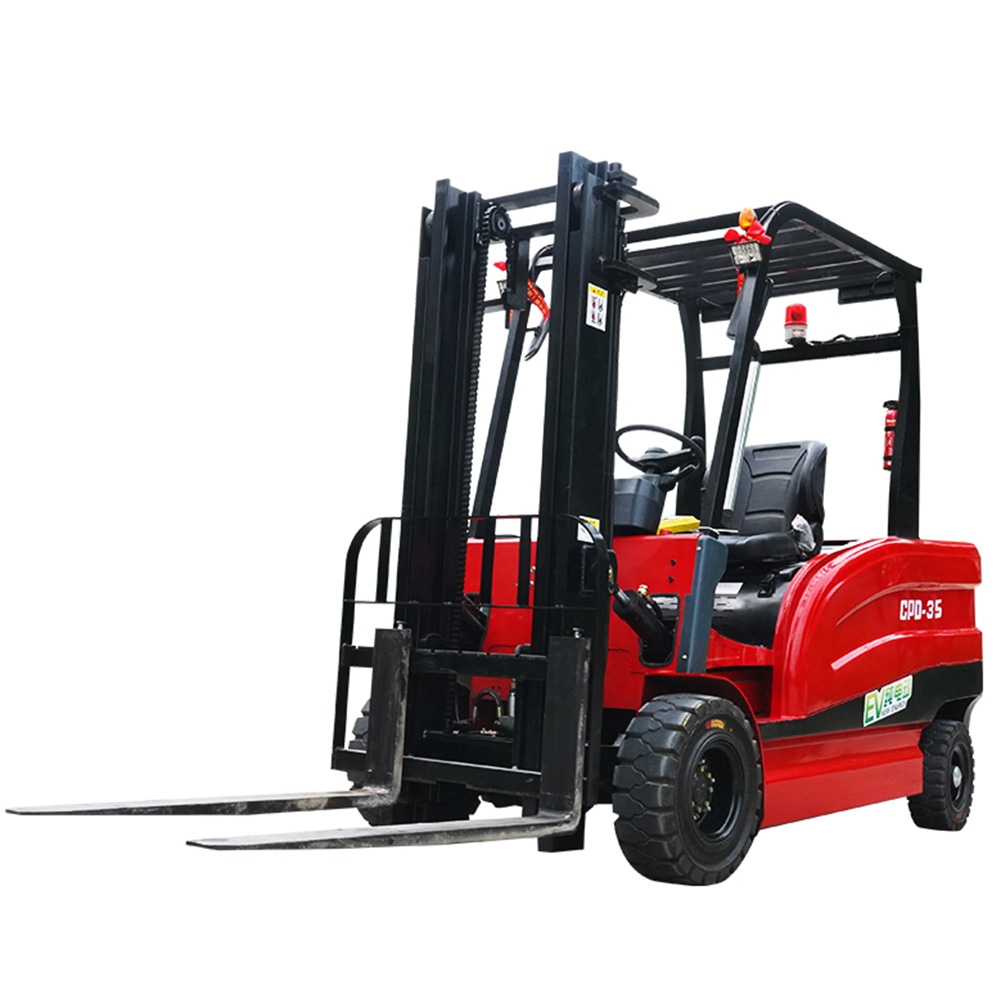

3.5 Ton Electric Forklift

3.5 Ton Electric Forklift has an impressive 3,500 kg rated load capacity, making it easy to handle all kinds of heavy material handling challenges. The high-strength body structure and precision-designed forks ensure unparalleled stability and durability during handling. Whether stacking goods up to several meters high or flexibly moving in narrow spaces, it can lift heavy materials with ease.



Core highlights:

Efficient load:3500 kg

Lifting height: 3000MM

Safety frame height: 2200MM

Minimum turning radius: 2420MM


Product DescriptionCase

3.5 Ton Electric Forklift


Vehicle parameters

Model

CPD3.5

Tire type (drive/steering)

Solid rubber tire

Power Type

Lead acid battery

Steering Tire Size

5.00-8

Operation type

Riding style

Driving Tire Size

6.50-10

Load(kg)

3500

Front Wheelbase(mm)

800

Load center distance(mm

500

Steering Wheelbase(mm)

830

Front Overhang(mm)

400

Drive motor power(kw 60min)

10

Wheelbase(mm)

1950

Lifting motor power(kw 15min)

10

Mast tilt angle (aβ)

6/8

Battery voltage(V/ah)

60/86

Minimum Ground Clearance(mm)

100

Controller

AC

Maximum lifting height(mm)

3000

Working pressure(mpa)

15

Dimension L/W(mm)

2850*1240

Maximum climbing angle(°)

15

Mast lifting/unlifting height(mm)

3550/2080

Driving brake type

Oil brake

Fork size L/W/T(mm)

1070

Parking brake type

Mechanics

Minimum turning radius(mm)

2420

Drive control type

Electric

Safety rack height(mm)

2200

Steeringtype

Hydraulic steering

Weight (including battery)(kg)

4700

Noise level

68
