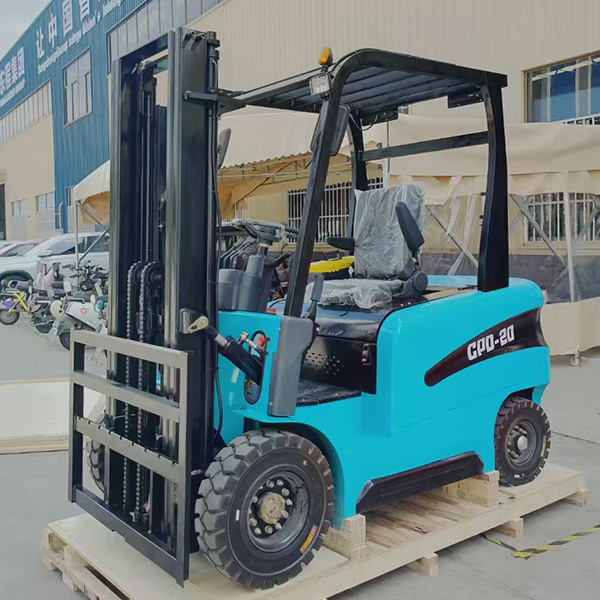

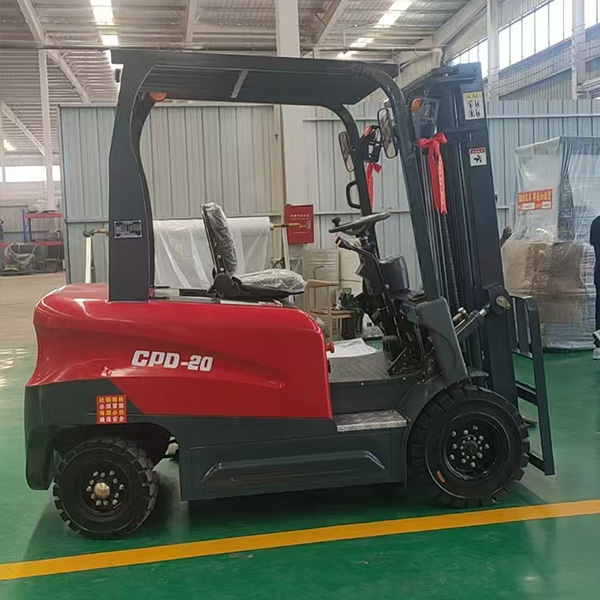

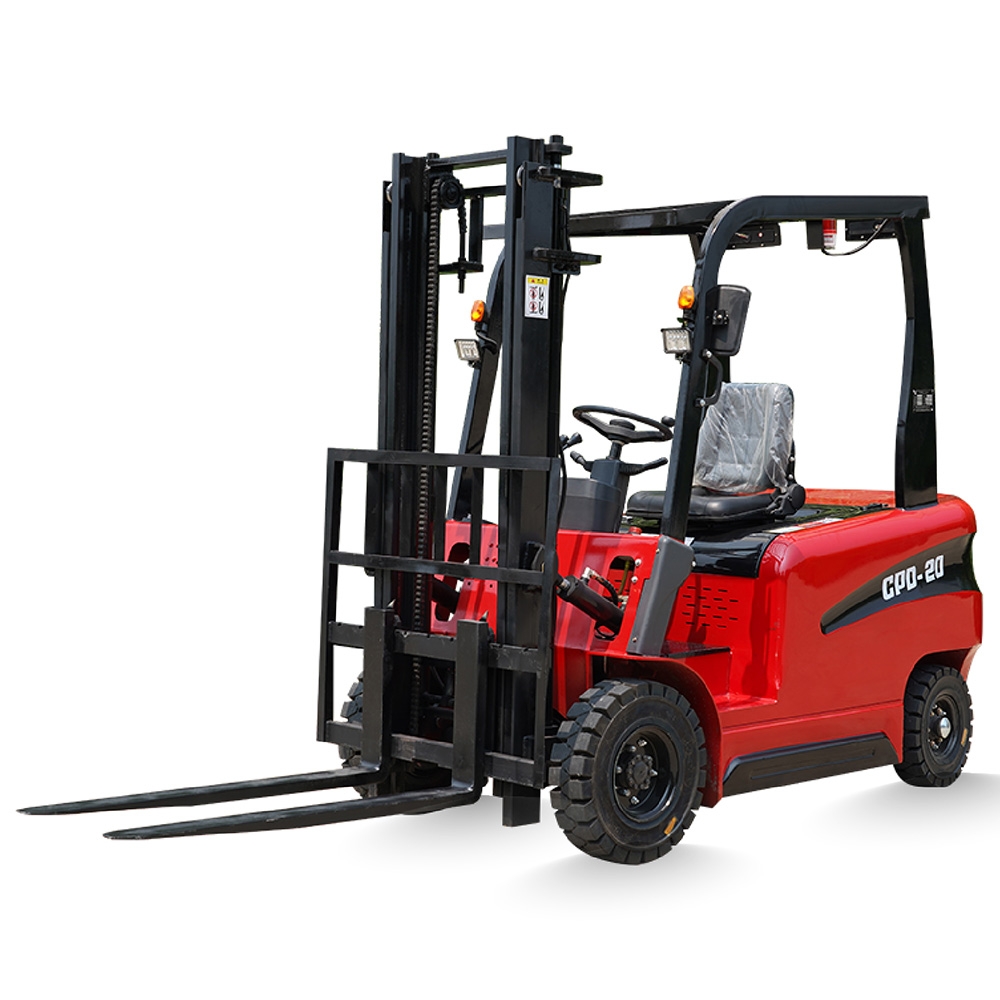

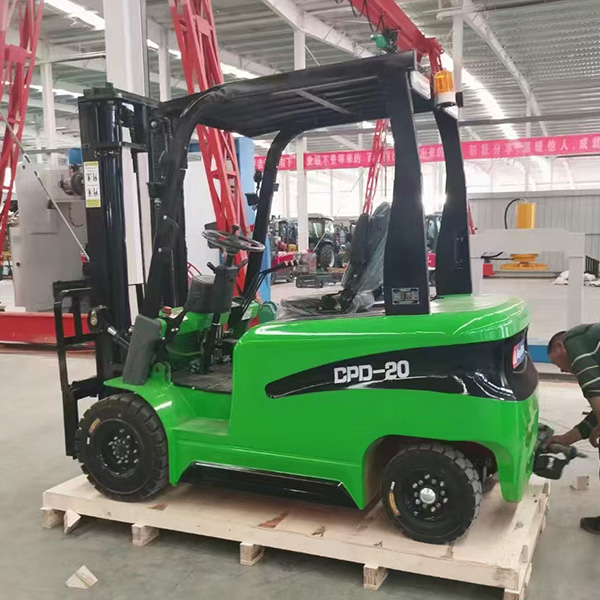

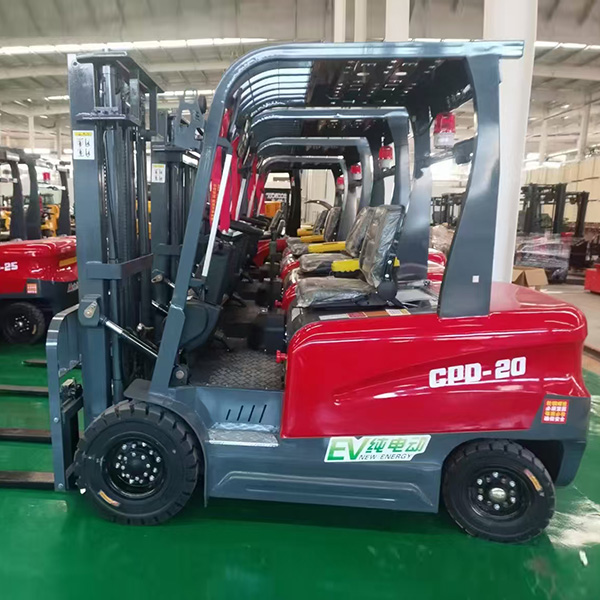

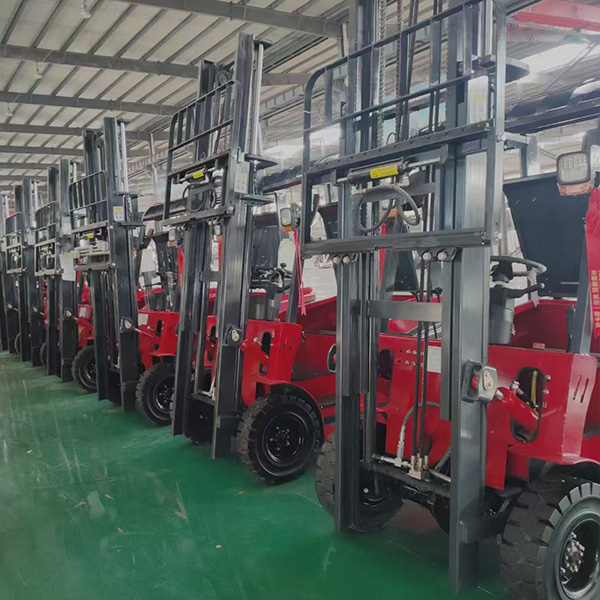

2 Ton electric forklift is a leader in the field of material handling, designed to meet the heavy handling needs of warehouses, factories and logistics centers.
BES designs and manufactures AC motors that deliver new levels of performance, efficiency and reliability to maximize your productivity and return on investment.
Core highlights:
Efficient load:2000 kg
Lifting height: 3000MM
Safety frame height: 2140MM
Minimum turning radius: 2420MM
|
Vehicle Parameters |
|||
|
Model |
CPD2.0 |
Tire type (drive/steering) |
Solid rubber tire |
|
Power Type |
Lead acid battery |
Steering Tire Size |
5.00-8 |
|
Operation type |
Riding style |
Driving Tire Size |
6.50-10 |
|
Load(kg) |
2000 |
Front Wheelbase(mm) |
1030 |
|
Load center distance(mm |
500 |
Steering Wheelbase(mm) |
910 |
|
Front Overhang(mm) |
400 |
Drive motor power(kw 60min) |
5 |
|
Wheelbase(mm) |
1630 |
Lifting motor power(kw 15min) |
4 |
|
Mast tilt angle (aβ) |
6/8 |
Battery voltage(V/ah) |
60/70 two-pack |
|
Minimum Ground Clearance(mm) |
100 |
Controller |
AC |
|
Maximum lifting height(mm) |
3000 |
Working pressure(mpa) |
15 |
|
Dimension L/W(mm) |
2430*1200 |
Maximum climbing angle(°) |
15 |
|
Mast lifting/unlifting height(mm) |
3550/2080 |
Driving brake type |
Oil brake |
|
Fork size L/W/T(mm) |
1070 |
Parking brake type |
Mechanics |
|
Minimum turning radius(mm) |
2420 |
Drive control type |
Electric |
|
Safety rack height(mm) |
2140 |
Steeringtype |
Hydraulic steering |
|
Weight (including battery)(kg) |
2680 |
Noise level |
68 |
|
|
|
|
|
