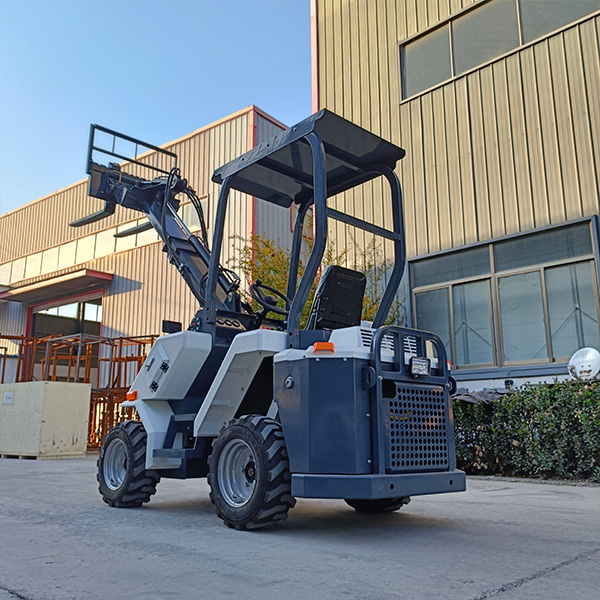

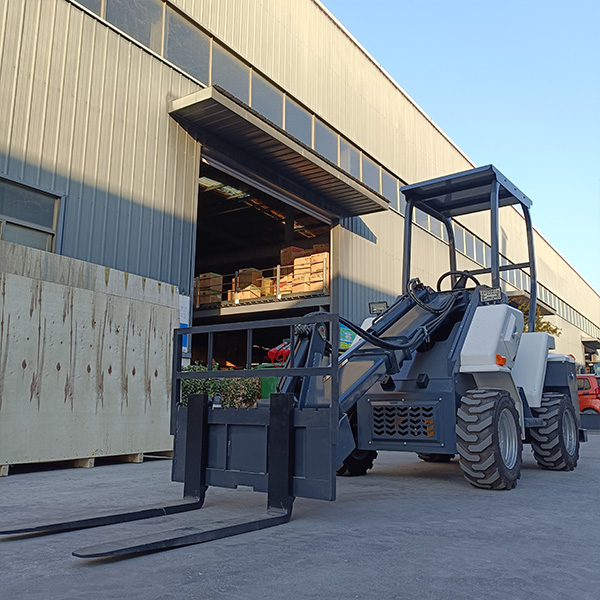

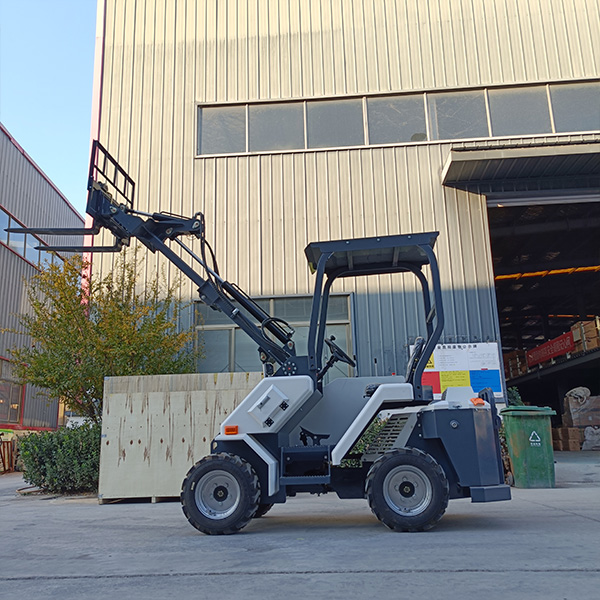

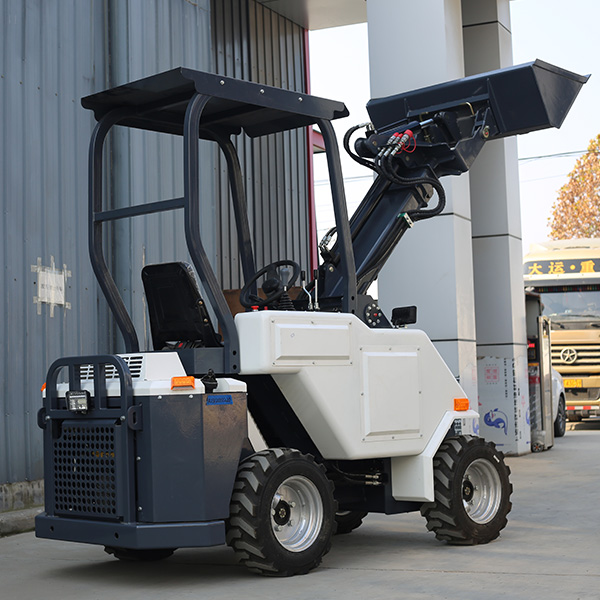

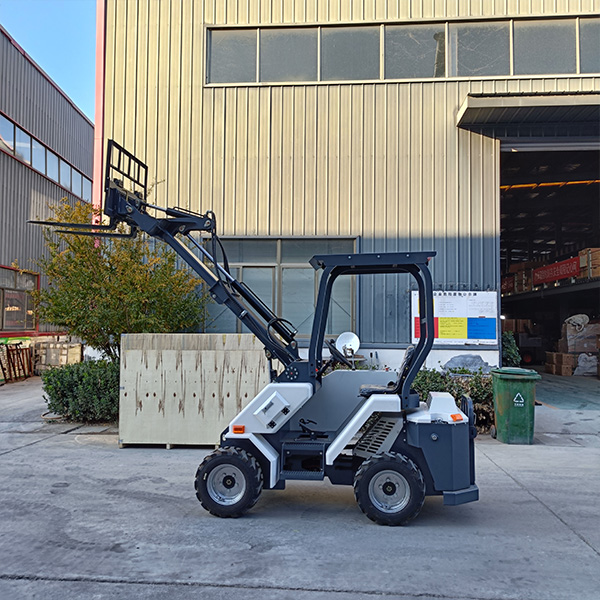

The BES30 small articulated loader delivers impressive lifting capability in a compact and turf-friendly package. It can carry many tools and complete various tasks, such as shoveling, digging, lifting, etc.
Minimal ground disturbance
Tight-turning articulation joint to get through tight spaces
Impressive lifting capacity
|
Detail |
|
|
Item |
Metric system |
|
Model |
BES |
|
Max lifting height |
3350mm |
|
Maximum pin height |
2680mm |
|
Dumping Height ofmainboom( dumping angle 45° |
2000mm |
|
Dumping reach of main boom |
1240mm |
|
Max. Loading capacity of mainboom |
800kg |
|
Lifting height of small boomDumping height of small boom(dumping angle 45°) |
2680mm |
|
Max. Loading capacity of smallboom |
2300mm |
|
Overall lengthground position) |
600kg |
|
(bucket on |
3380mm |
|
Overall width |
1240mm |
|
Overall Height |
2250mm |
|
Wheel base |
1360mm |
|
Tread |
20mm |
|
Min. Ground clearance |
190mm |
|
Turning radius |
2600mm |
|
Engine |
|
|
Engine model |
Rato739/Briggs&Strat ton3864/HondaGX690/Kubota D1105 |
|
Engine type |
Gasoline engine, Aircooled/Dieseloil, Water cooled |
|
Rated power |
23HP/18.2kw |
|
Rated speed(rpm) |
3600/3000 |
|
Max. Torque |
71.5 |
|
Speed at Max. Torque(rpm) |
2200 |
|
Number of cylinders |
2/3 |
|
displacement |
739/627/690/1123ML |
|
Rated fuel consumption |
240g/kw·h |
|
Hydraulic system |
|
|
System Pressure (Mpa） |
25MPa |
|
Pump Pressure (Mpa） |
31MPa |
|
Driving |
4 wheel drive |
|
Steering type |
All hydraulicsteering |
|
Tyre type |
|
|
Tire model |
23*8.5-12 |
|
Brake drum diameter |
300 |
|
Performance Parameter |
|
|
Carrying capacity |
500Kg |
|
Bucket volume |
0.3m³ |
|
Max. Speed |
12 Km/h |
|
Net weight |
1446/1552Kg |
|
Working weight |
2000KG |
|
Gradeability |
30% |
|
|
|
|
|
|
|
|
|
|
|
|
