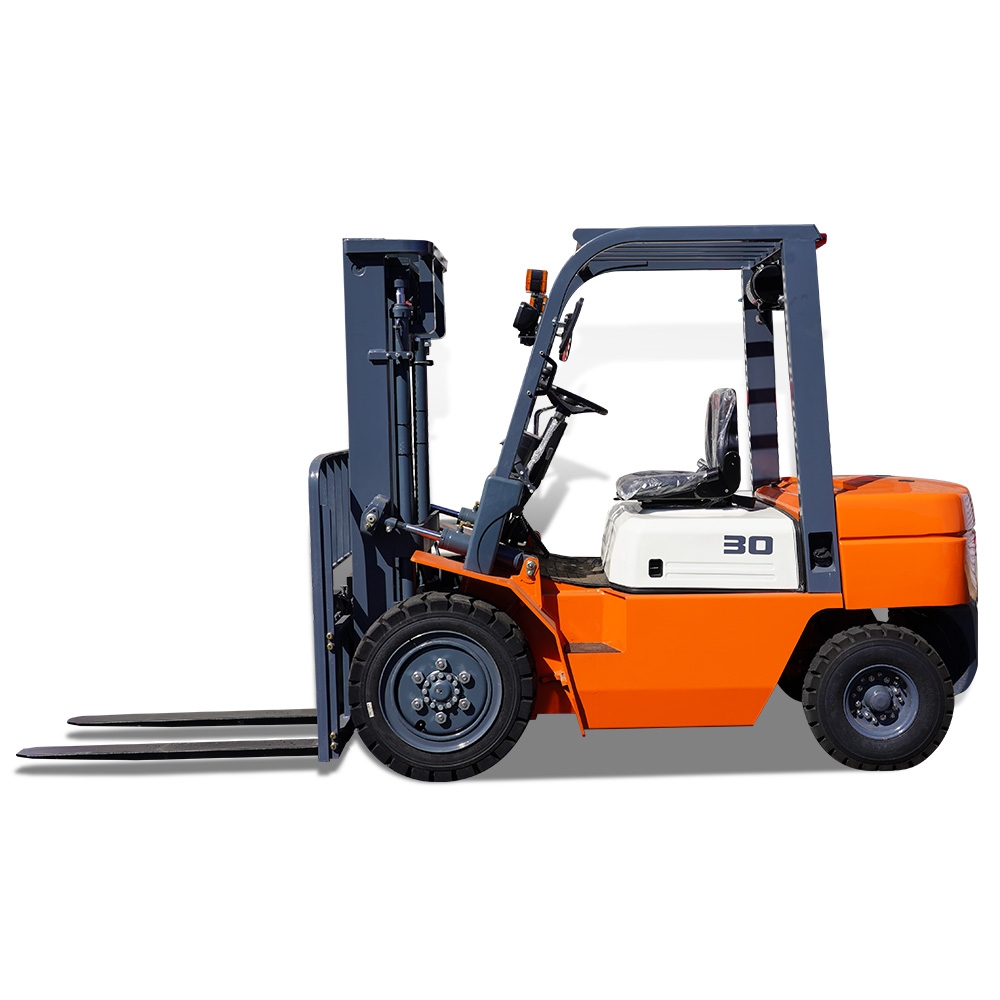

The working principle of a diesel forklift is mainly to rely on the power generated by the diesel engine, which is transmitted to the wheels through the transmission system to achieve the movement of the forklift. A diesel forklift refers to a forklift that uses a diesel engine as a power source. This type of forklift has the characteristics of high output power and high fuel efficiency, and is widely used in industrial handling operations. The main advantages of a diesel forklift include high efficiency and low operating costs. It also has the characteristics of large carrying capacity and a wide range of applications. It can effectively complete various handling operations in ports, stations, airports, freight yards, workshops, warehouses, distribution centers and other places.
Core highlights:
Efficient load: 3000 kg
Lifting height: 3000MM/4500MM
Minimum turning radius: 2400MM
Maximum climbing angle: 20
|
Characteristic |
Unit |
Parameter |
|
Product Model |
|
CPC-30 |
|
Fuel Type |
|
Diesel Oil |
|
Rated Load |
KG |
3000 |
|
Load Center |
MM |
500 |
|
Wheelbase |
MM |
1700 |
|
Engine Model |
|
New Chai4D27G31 |
|
Performance |
Unit |
Parameter |
|
Lifting Height |
MM |
3000 |
|
Minimum Turning Radius |
MM |
2400 |
|
Overall Lifting Height Of The Gantry |
MM |
4265 |
|
Maximum Driving Speed At Full Load |
KM/H |
19 |
|
Maximum Lifting Speed At Full Load |
MM/S |
480 |
|
Maximum Traction At Full Load |
KN |
13.5 |
|
Maximum Climbing Angle |
% |
20 |
|
Tire |
Unit |
Parameter |
|
Tire Front Size |
|
28*9-15-12PR |
|
Rear Tire Size |
|
6.50-10-10PR |
|
Track Width (front/rear) |
MM |
1000/970 |
|
Front Suspension |
MM |
495 |
|
Size |
Unit |
Parameter |
|
Aspect Ratio (with fork) |
MM |
3820*1225*2165 |
|
Whole Machine Weight |
KG |
4350 |
|
Starting Rated Power |
KW/R.P.M |
36.8 |
|
Transmission |
|
Mechanical/Hydraulic |
|
Working Pressure |
MPA |
18.5 |
