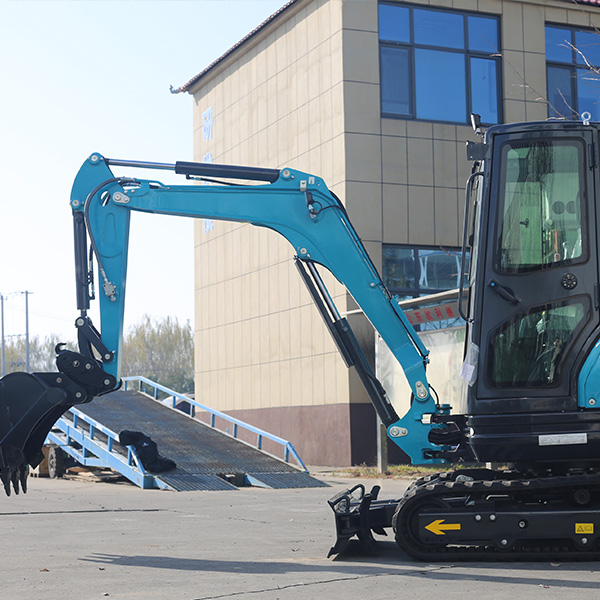

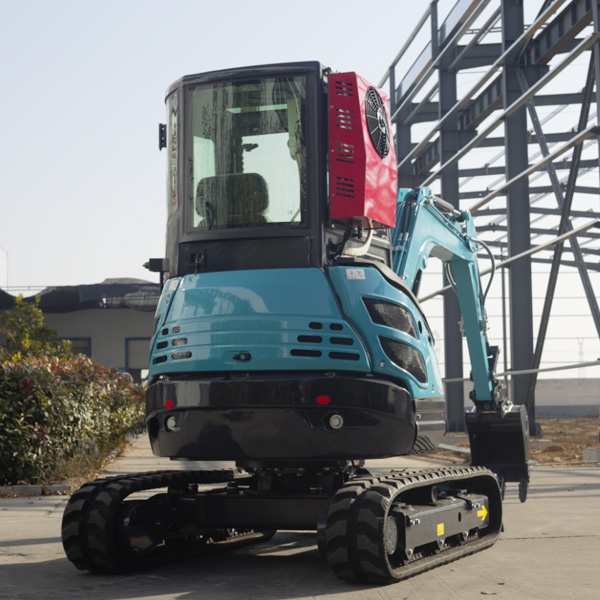

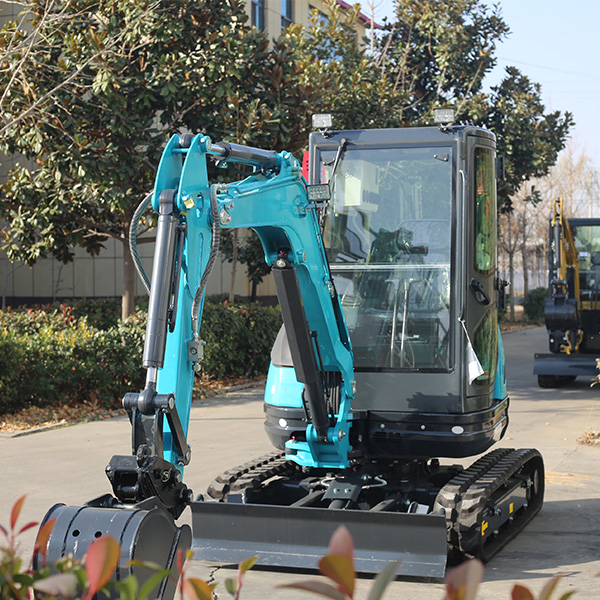

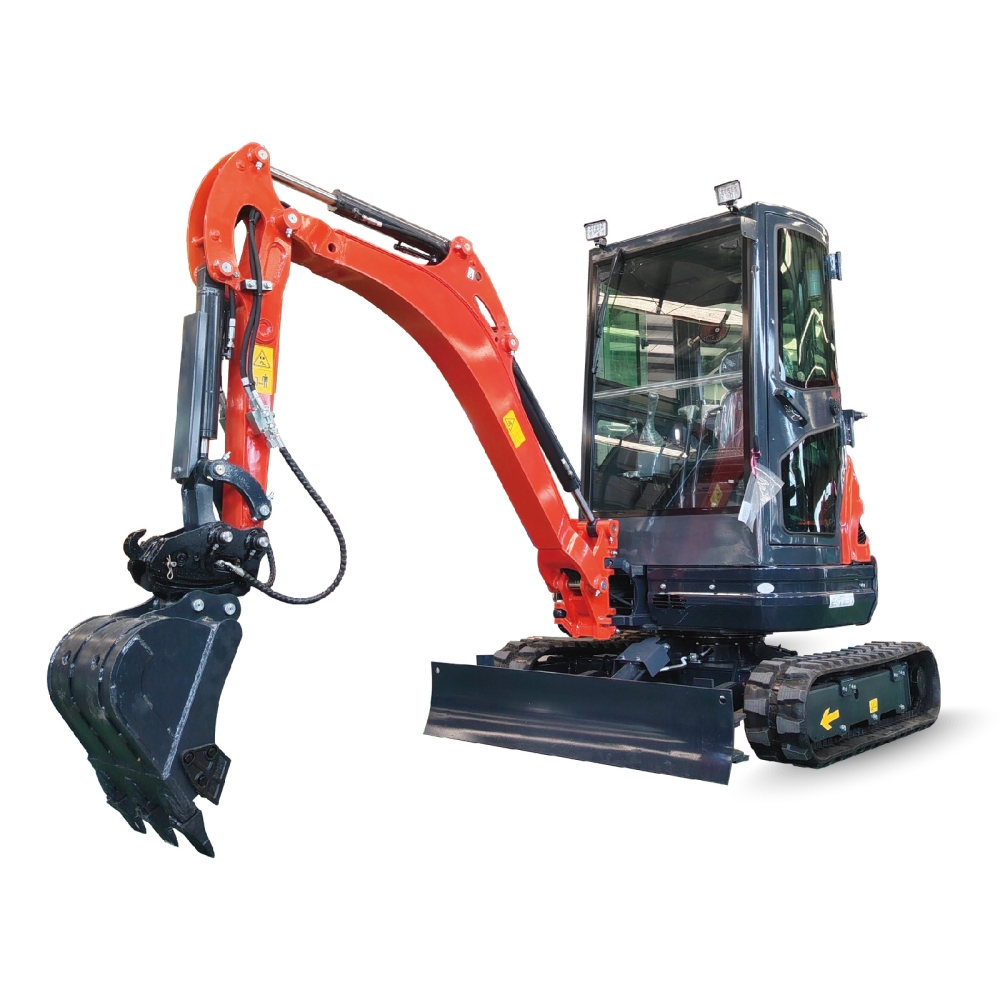

W25 Pro - 2.5 Ton Mini Excavator

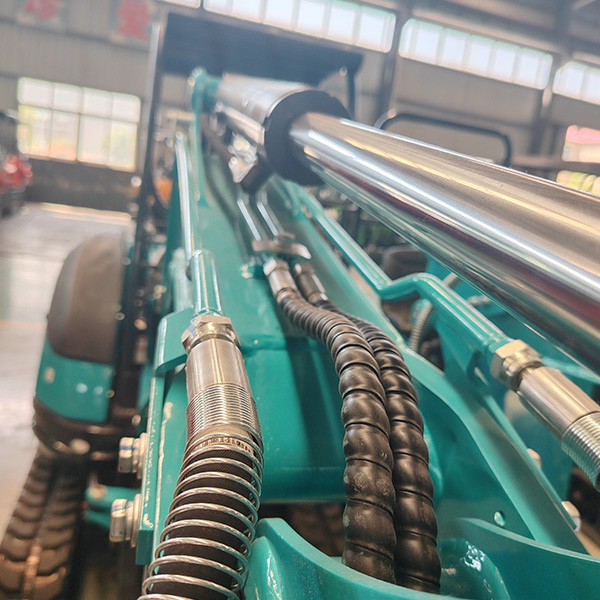

● High performance hydraulic system to ensure smooth operation and improve work efficiency.

● Carefully adjusted engine to provide powerful power and improve construction efficiency.

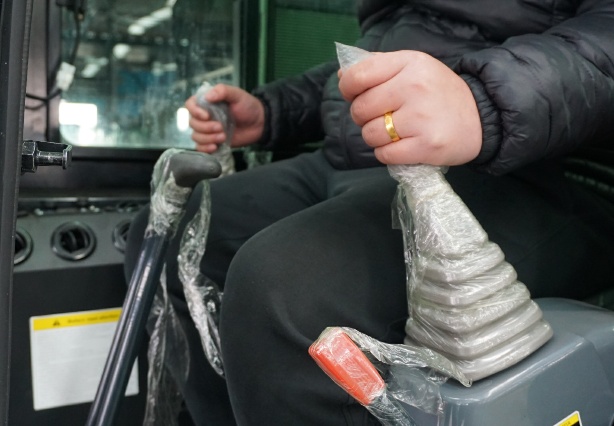

● Intelligent control system to provide higher construction accuracy and stability

● Multi-functional design,can be equipped with a variety of digging accessories,improve construction flexibility.

● Compact design of small excavator,adapt to small construction space,improve construction efficiency.

● The excavator has strong structure,strong durability,and reduces maintenance and replacement costs.

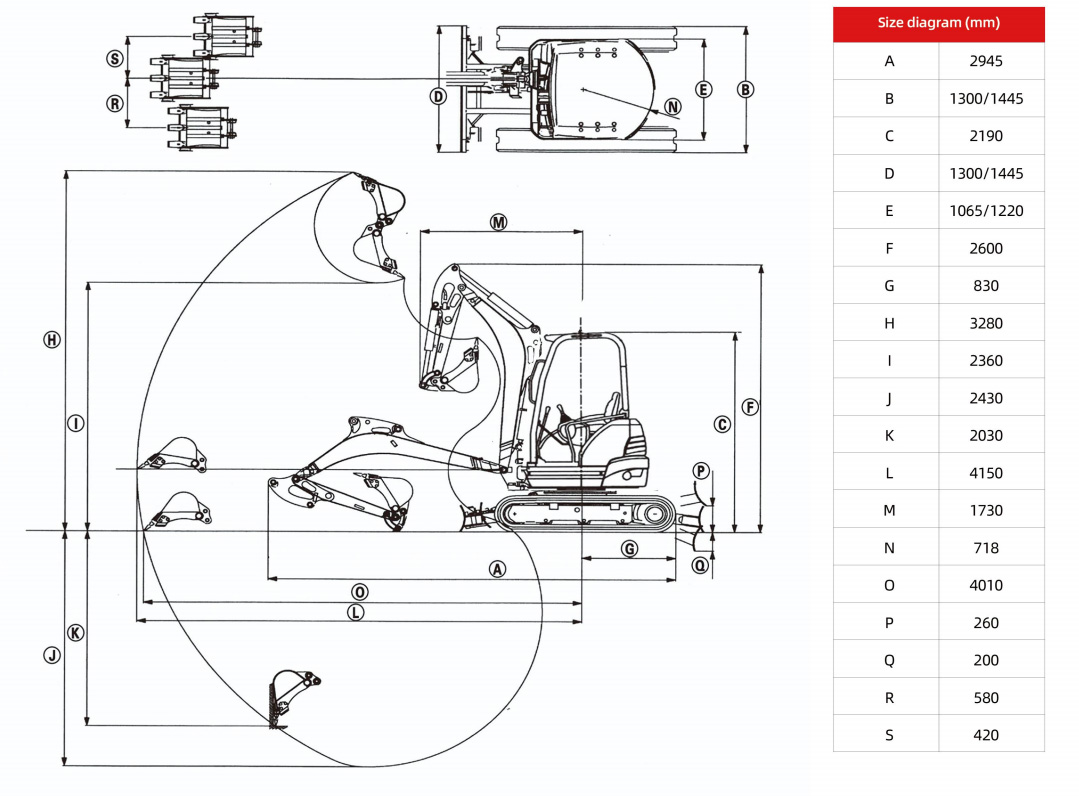

Overall size		Unit	Numerical
Length	A	mm	2945
Width	B	mm	1300/1445
Height	C	mm	2190
Dozer blade width	D	mm	1300/1445
Dozer blade height		mm	268
Track center distance	E	mm	1065/1220
Boom height	F	mm	2600
Distance from the center of rotation to the tail of the track	G	mm	830
Track shoe width		mm	230
Platform ground clearance		mm	145
Bucket Width		mm	450(400)
Track length		mm	1585
Wheel spacing		mm	1230
Scope of operation		Unit	Numerical
Max.digging height		mm	3280
Max.unloading height		mm	2360
Max.digging depth		mm	2430
Max vertical mining depth		mm	2030
Min.turning radius		mm	4150
Max.digging radius		mm	1730
Min.turning radiu	N	mm	718
Max.digging distance	O	mm	4010
Max.bulldozing height	P	mm	260
Max.depth of bulldoing	Q	mm	200
Bucket moving left distance	R	mm	580
Bucket moving right distance	S	mm	420
Performance parameter		Unit	Numerical
Quality of work		kg	2480
Bucket Capacity		m³	0.04

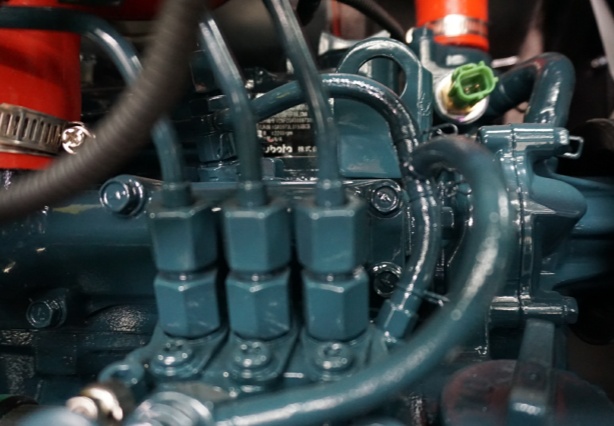

Engine Model name			YANMAR ЗTNVBOF
Displacement		L(cc)	1.116
Output power		KW/rpm	15
Working speed(max/min		r/min	2.4/4.2
Swing speed			9.5
Swing angle		(°)	75(55)
Grade ability		%(°)	58(30)
Ground pressure		kpa	28.4(0.29)
Max.excavating force		KN	18.4
Fuel Tank Capacity		L	28
