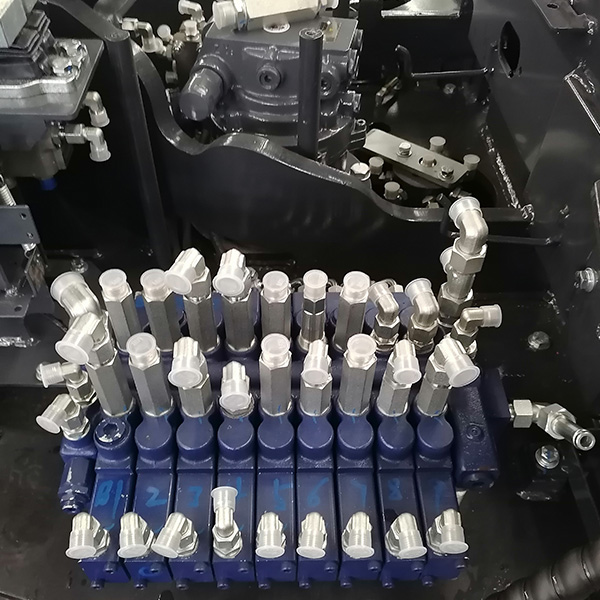

● High performance hydraulic system to ensure smooth operation and improve work efficiency.
● Carefully adjusted engine to provide powerful power and improve construction efficiency.
● Intelligent control system to provide higher construction accuracy and stability

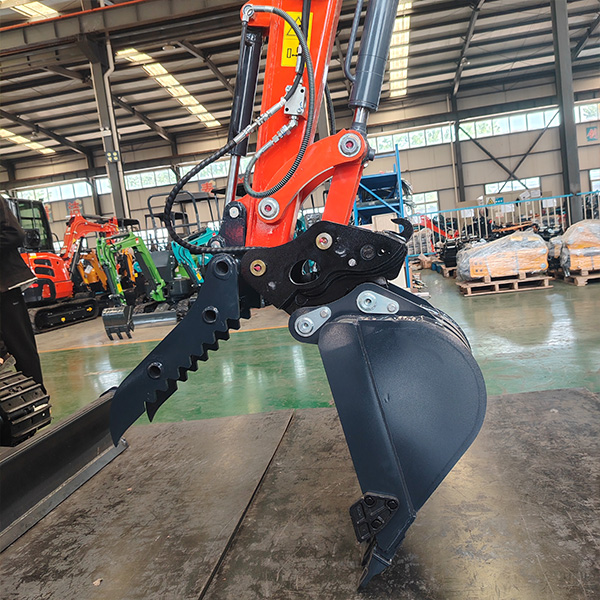

● Multi-functional design,can be equipped with a variety of digging accessories,improve construction flexibility.
● Compact design of small excavator,adapt to small construction space,improve construction efficiency.
● The excavator has strong structure,strong durability,and reduces maintenance and replacement costs.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

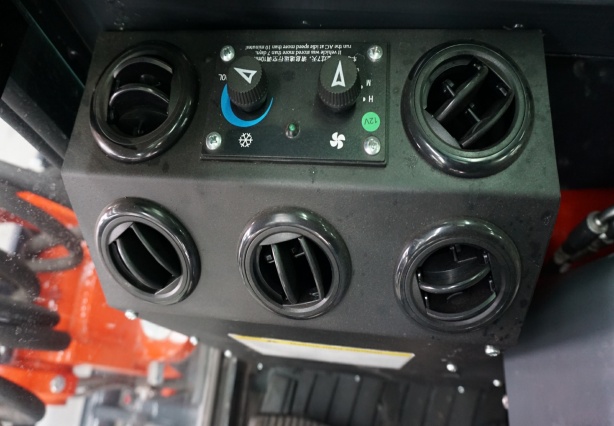

 The cabin air conditioning provides alonger comfortable operating space |

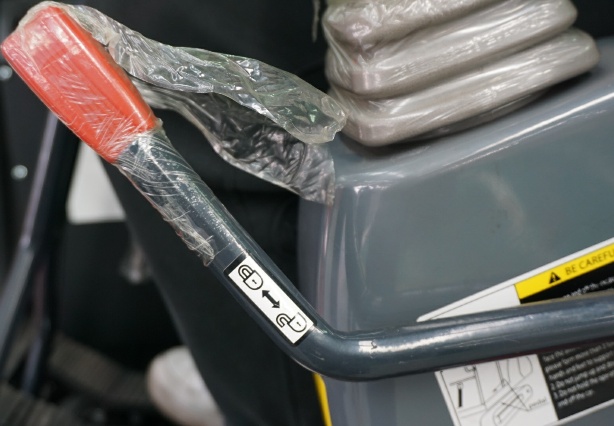

 The Safety lock |

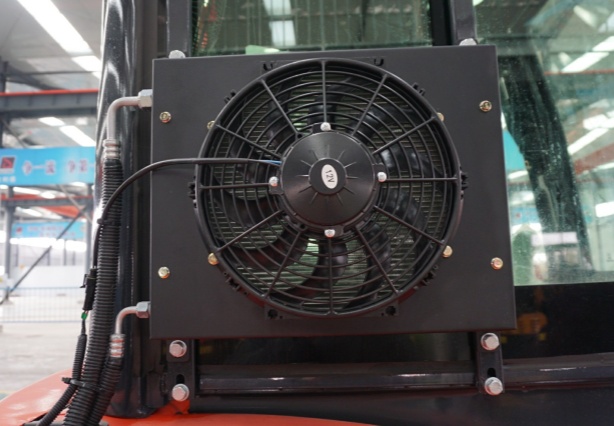

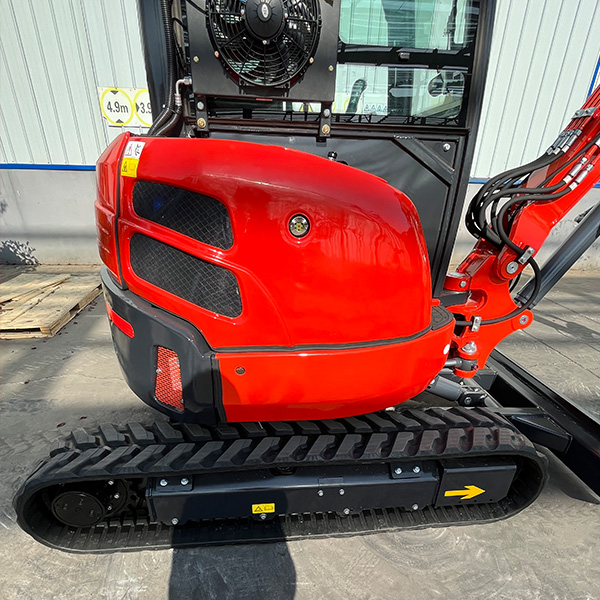

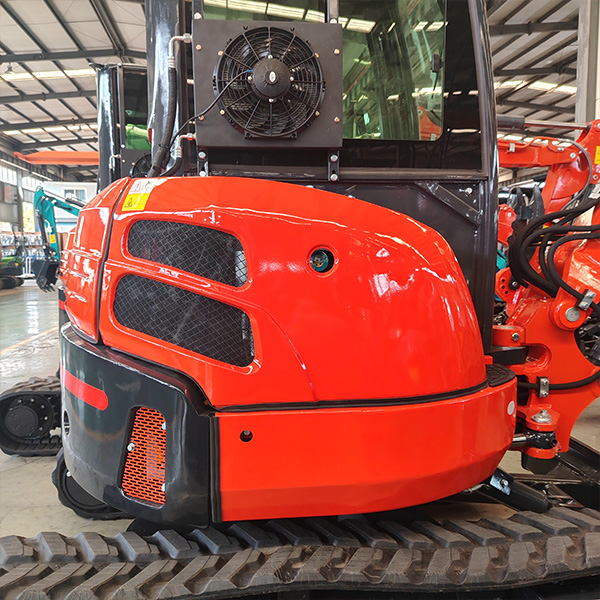

 The Integrated air conditioner |

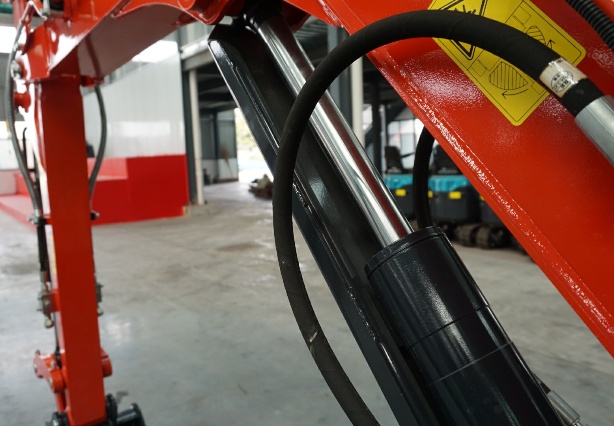

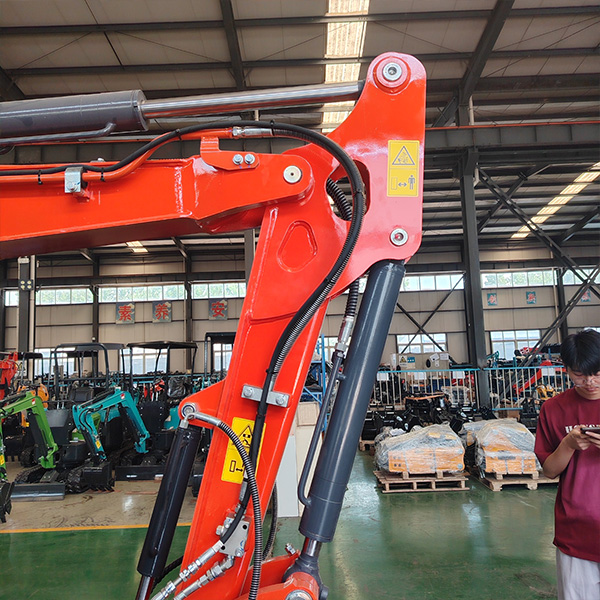

Bold oil cylinder, imported seal,good flexibility and longer service life |
|

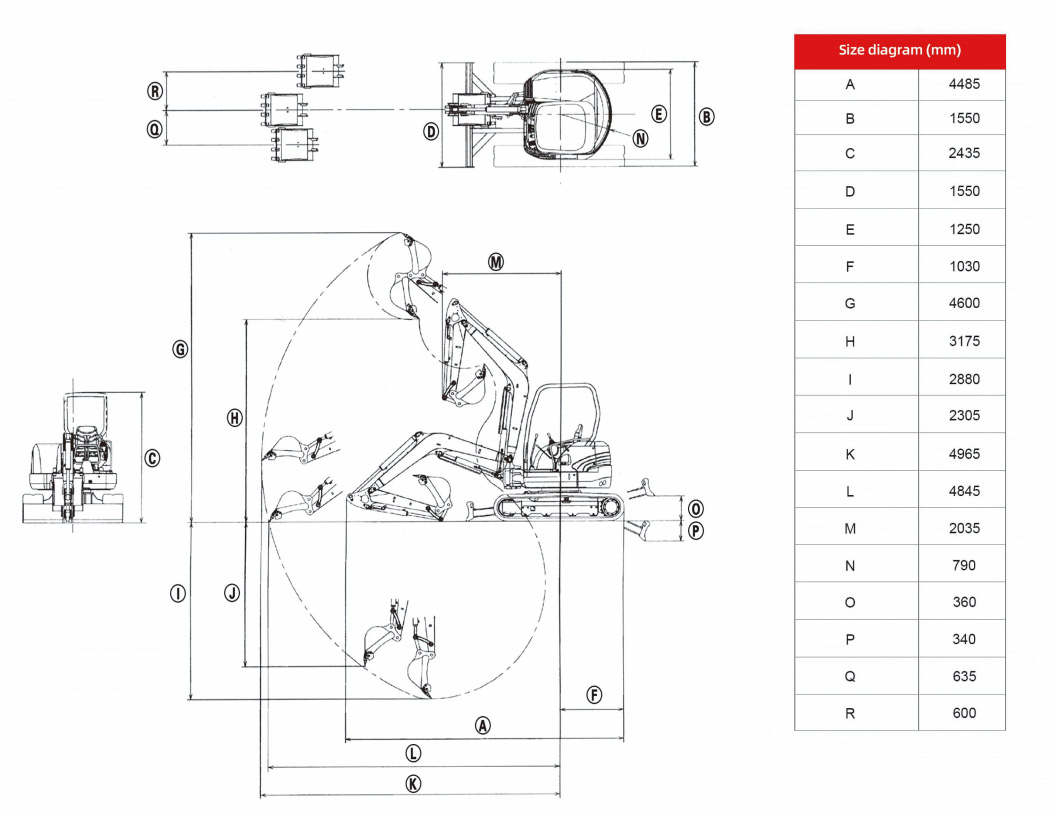

Overall size |
|
Unit |
Numerical |
|
Length |
A |
mm |
4485 |
|
Width |
B |
mm |
1550 |
|
Height |
C |
mm |
2435 |
|

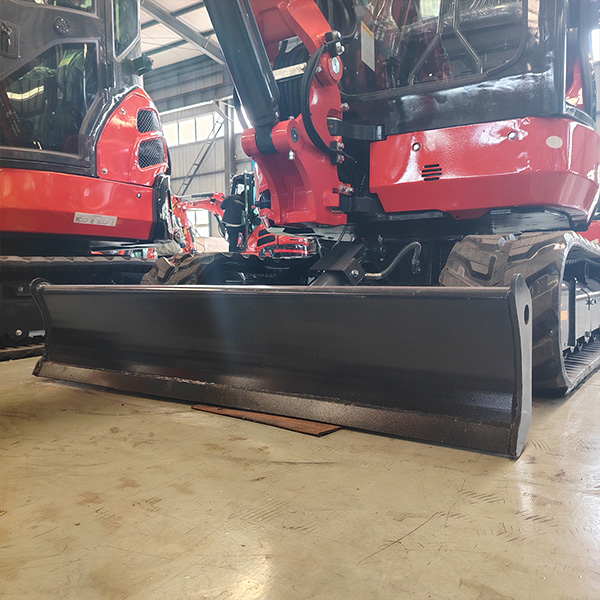

Dozer blade width |
D |
mm |
1550 |
|
Dozer blade height |
|
mm |
335 |
|
Track center distance |
E |
mm |
1250 |
|
Distance from the center of rotation to the tail of the track |
F |
mm |
1030 |
|
Track shoe width |
|
mm |
300 |
|
Platform ground clearance |
|
mm |
290 |
|
Bucket Width |
|
mm |
520(470) |
|
Track length |
|
mm |
2100 |
|
Wheel spacing |
|
mm |
1665 |
|
Scope of operation |
|
Unit |
Numerical |
|
Max.digging height |
G |
mm |
4600 |
|
Max.unloading height |
H |
mm |
3175 |
|
Max.digging depth |
I |
mm |
2880 |
|
Maxvertical mining depth |
J |
mm |
2305 |
|
Min.turning radius |
K |
mm |
4965 |
|
Max.digging radius |
L |
mm |
4845 |
|
Min.turning radiu |
M |
mm |
2035 |
|
Max.digging distance |
N |
mm |
790 |
|
Max.bulldozing height |
O |
mm |
360 |
|
Max.depth of bulldoing |
P |
mm |
340 |
|
Bucket moving left distance |
Q |
mm |
635 |
|
Bucket moving right distance |
R |
mm |
600 |
|
Performance parameter |
|
Unit |
Numerical |
|
Quality of work |
|
kg |
3515 |
|
Bucket Capacity |
|
m³ |
0.09 |
|
Engine Model name |
|
|
3TNV88-BSSY |
|
Displacement |
|
L(cc) |
1.64 |
|
Output power |
|
KW/rpm |
20.5 |
|
Working speed(max/min) |
|
r/min |
3.0/4.2 |
|
Swing speed |
|
|
8.5 |
|
Swing angle |
|
(°) |
70/50 |
|
Grade ability |
|
%(°) |
58(30) |
|
Ground pressure |
|
kpa |
28(0.2) |
|
Max.excavating force |
|
KN |
26.5 |
|
Fuel Tank Capacity |
|
L |
40 |
|
|
|
|
|
|
|
|
|
|
