● High performance hydraulic system to ensure smooth operation and improve work efficiency.
● Carefully adjusted engine to provide powerful power and improve construction efficiency.
● Intelligent control system to provide higher construction accuracy and stability
● Multi-functional design,can be equipped with a variety of digging accessories,improve construction flexibility.
● Compact design of small excavator,adapt to small construction space,improve construction efficiency.
● The excavator has strong structure,strong durability,and reduces maintenance and replacement costs.
|
|
|
|
|
|
|
|
|
|
|
|
 Hammer stop valve,cast steel material durable wear-resistant |

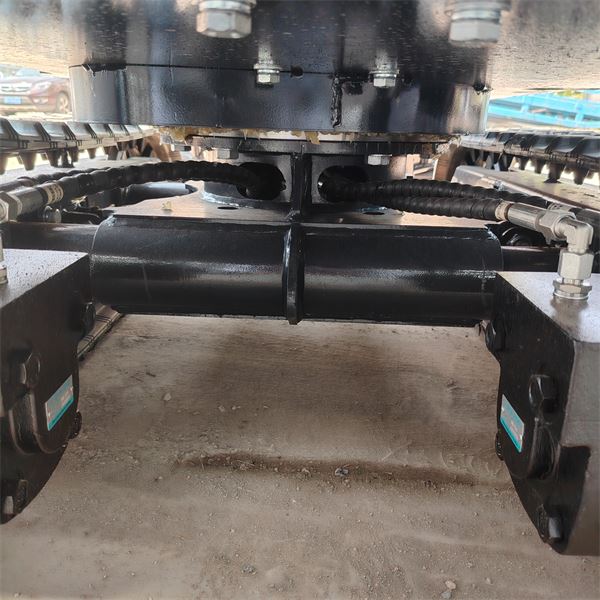

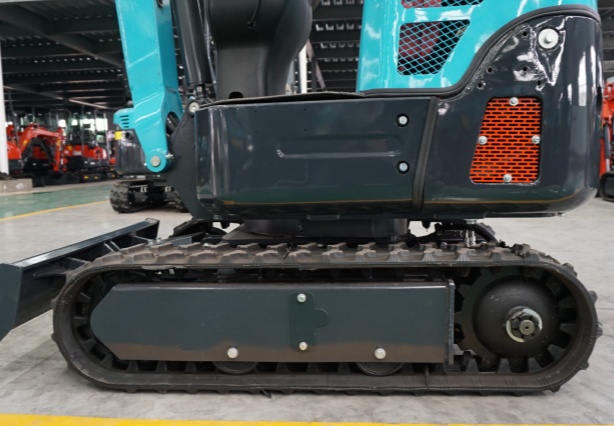

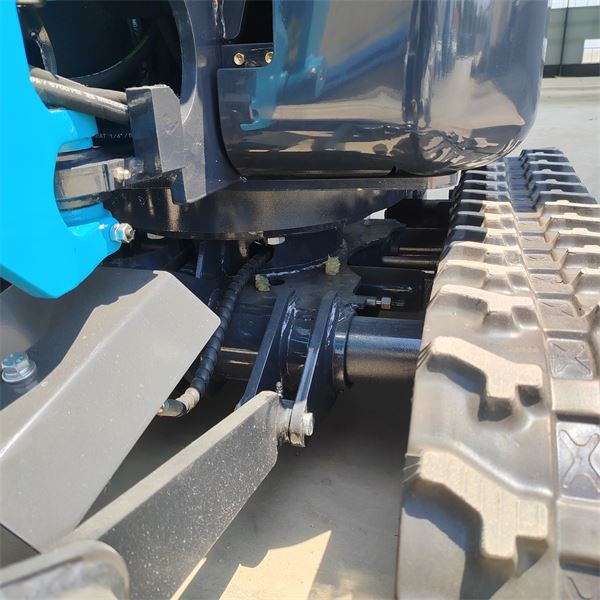

Sturdy chassis |

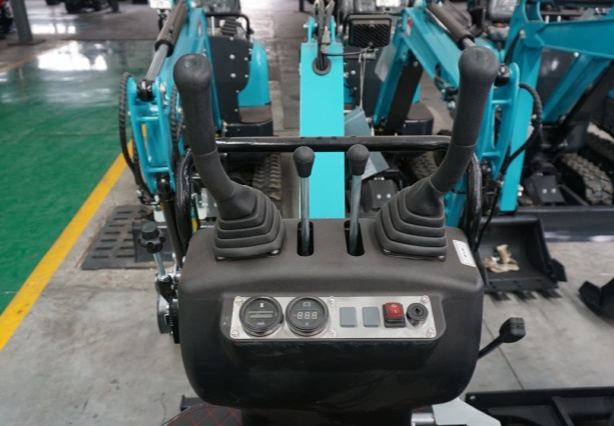

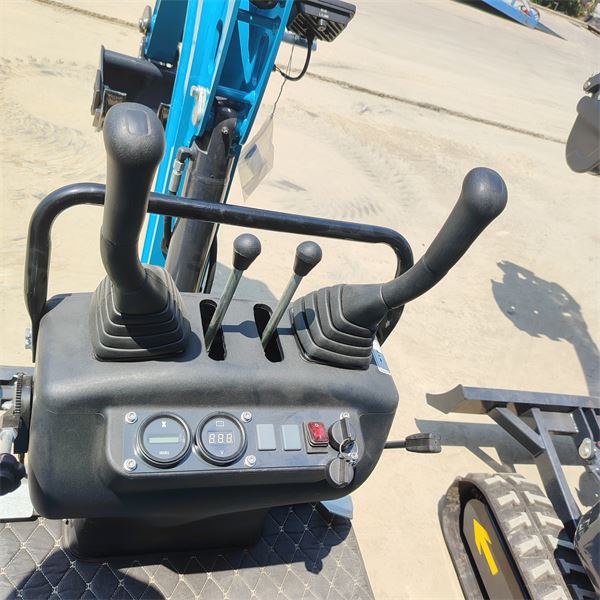

 Professional operating platform easy to operate |

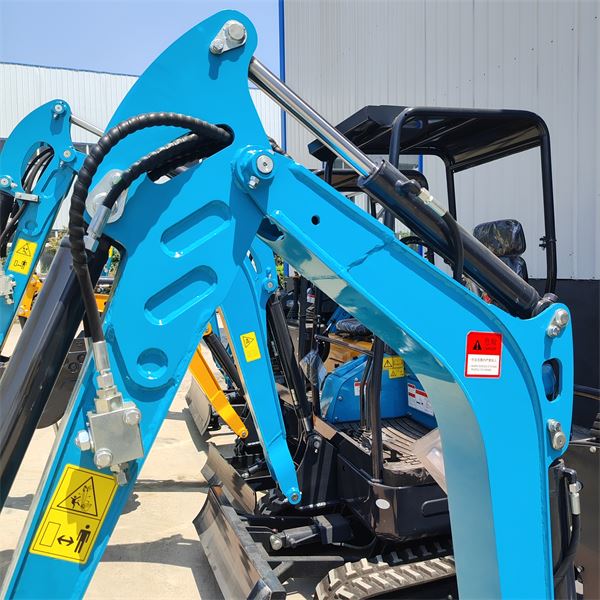

 Bold oil cylinder,imported seal, good flexibility and longer service life |
|

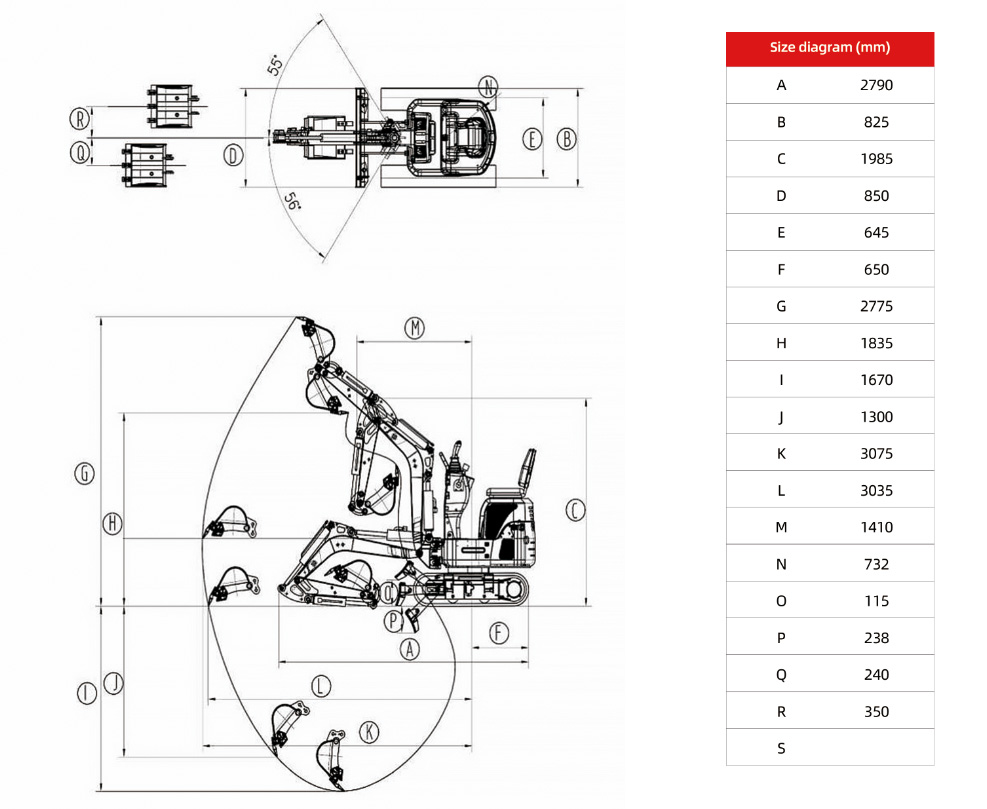

Overall size |
|
Unit |
Numerical |
|
Total length |
A |
mm |
2790 |
|
Total width |
B |
mm |
825 |
|
Total Height |
C |
mm |
1985 |
|
Bulldozer width |
D |
mm |
850 |
|
Bulldozer Height |
|
mm |
216.5 |
|
Track Center distance |
E |
mm |
645 |
|
Arm Height |
|
mm |
1980 |
|
Distance from rotation center to the back edge of track |
F |
mm |
650 |
|
Standard creeper tread width |
|
mm |
180 |
|
Standard Bucket width |
|
mm |
342 |
|
Full length of track |
|
mm |
1220 |
|
Wheel spacing |
|
mm |
905 |
|
Scope of operation |
|
Unit |
Numerical |
|
Max.digging height |
|
mm |
2875 |
|
Max.unloading height |
|
mm |
1835 |
|
Max.digging depth |
|
mm |
1670 |
|
Max.vertical digging depth |
|
mm |
1300 |
|
Max.digging distance |
|
mm |
3075 |
|
Maximum digging ground distance |
|
mm |
3035 |
|
Min.turning radius of frontiend |
M |
mm |
1410 |
|
Min.turning radius of back end |
N |
mm |
732 |
|
Maxbulldozing height |
O |
Mm |
115 |
|
Max.bulldozing depth |
P |
mm |
238 |
|
Bucket left horizontal shift distance |
Q |
mM |
240 |
|
Bucket right horizontalshift distance人 |
R |
mm |
350 |
|
Performance parameter |
Unit |
Numerical |
|
|
Quality of work |
|
kg |
1000 |
|
Bucket capacity |
|
m3 |
0.022 |
|
Engine type |
|
|
KP192FA |
|
Displacement |
|
L(cc) |
0.499 |
|
Rated power |
|
KW/rpm |
8.2 |
|
Speed of rotation |
|
r/min |
11 |
|
Swing angle |
|
(°) |
56/55 |
|
Climbing capacity |
|
%(°) |
25 (30) |
|
Ground pressure |
|
kpa |
0.35 |
|
Bucket digging power |
|
KN |
6.2 |
|
Fuel tank capacity |
|
L |
55 |
|
|
|
|
|
|
|
|
|
|
