● High performance hydraulic system to ensure smooth operation and improve work efficiency.
● Carefully adjusted engine to provide powerful power and improve construction efficiency.
● Intelligent control system to provide higher construction accuracy and stability

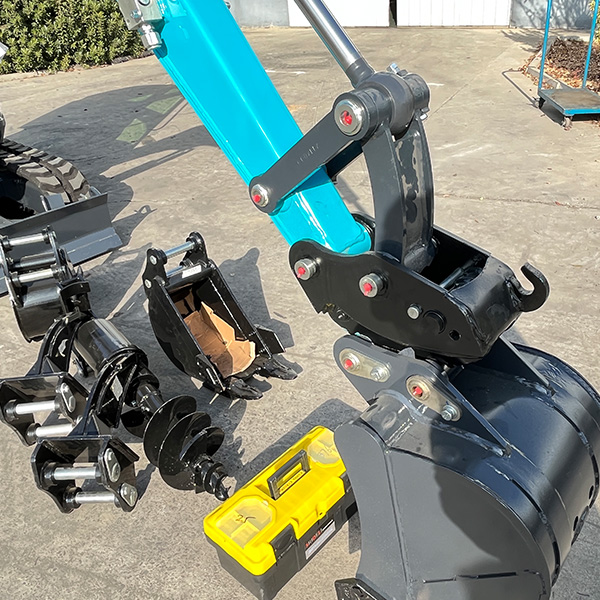

● Multi-functional design,can be equipped with a variety of digging accessories,improve construction flexibility.
● Compact design of small excavator,adapt to small construction space,improve construction efficiency.
● The excavator has strong structure,strong durability,and reduces maintenance and replacement costs.
|
|
|
|
|
|
|
|
|
|
|
|

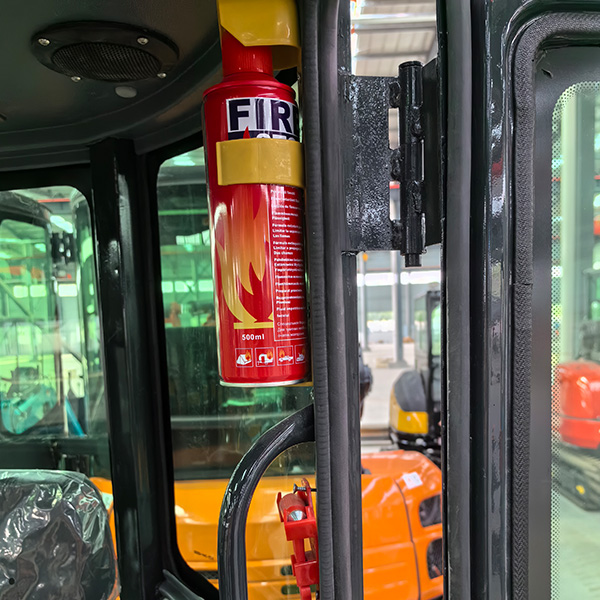

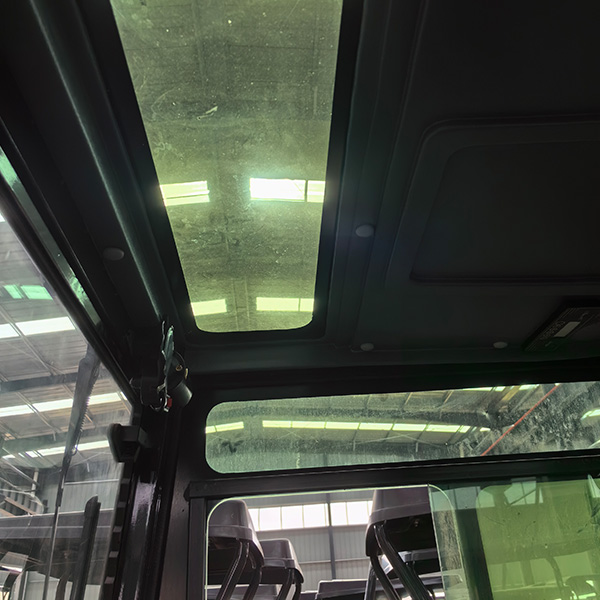

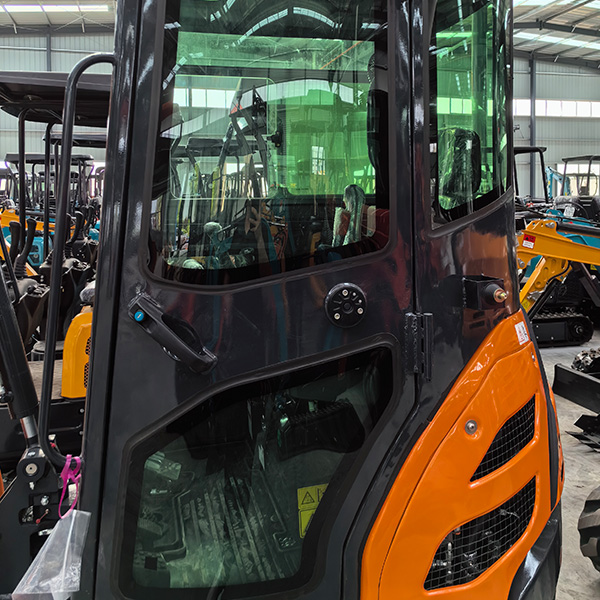

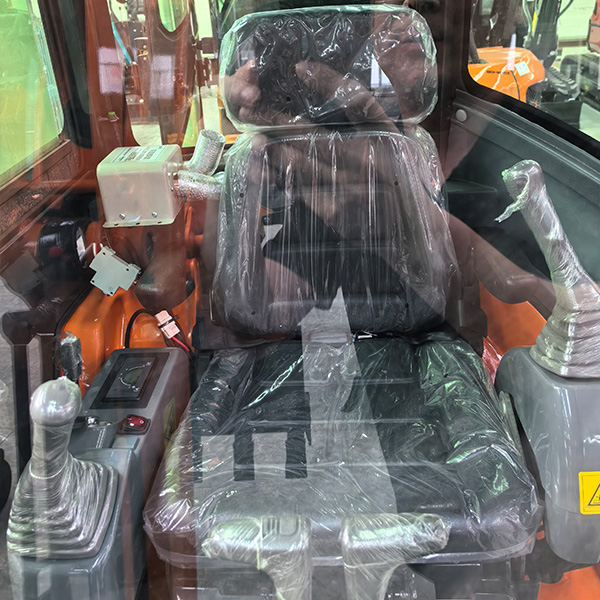

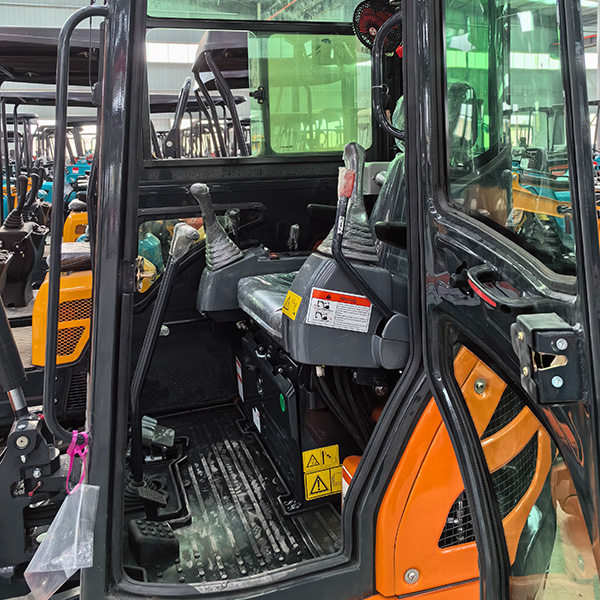

Right cabin |

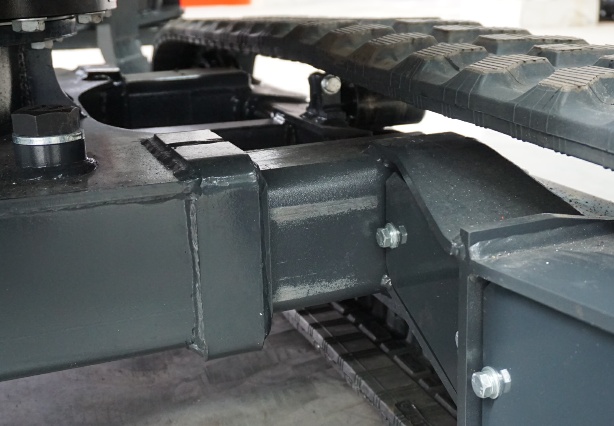

 Free retractable chassis |
 Kubota Engine |

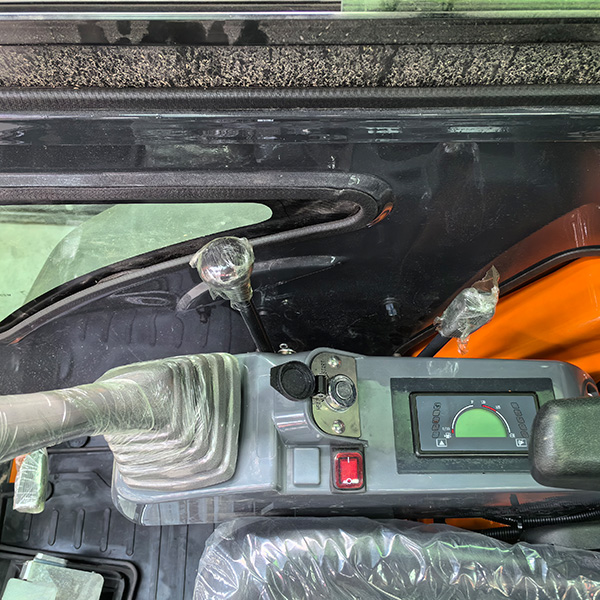

 LCD display |
|

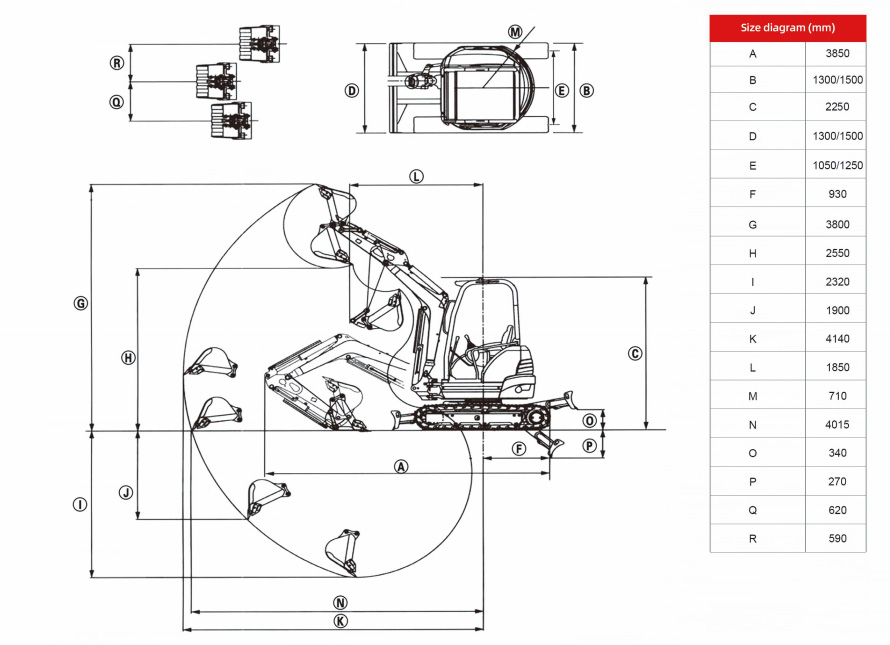

Overall size |
|
Unit |
Numerical |
|
Length |
A |
mm |
3982 |
|
Width |
B |
mm |
1300/1500 |
|
Height |
C |
mm |
2250 |
|
Dozer blade width |
D |
mm |
1300/1500 |
|
Dozer blade height |
|
mm |
292 |
|
Track center distance |
E |
mm |
1050/1250 |
|
Distance from the center of rotation to the tail of the track |
F |
mm |
930 |
|
Track shoe width |
|
mm |
250 |
|
Platform ground clearance |
|
mm |
170 |
|
Bucket Width |
|
mm |
460(410) |
|
Track length |
|
mm |
1860 |
|
Wheel spacing |
|
mm |
1475 |
|
Scope of operation |
|
Unit |
Numerical |
|
Max.digging height |
|
mm |
3880 |
|
Max.unloading height |
|
mm |
2550 |
|
Max.digging depth |
|
mm |
2320 |
|
Maxvertical mining depth |
|
mm |
1900 |
|
Min.turning radius |
|
mm |
4140 |
|
Max.digging radius |
|
mm |
1850 |
|
Min.turning radiu |
M |
mm |
710 |
|
Max.digging distance |
N |
mm |
4015 |
|
Max.bulldozing height |
O |
mm |
340 |
|
Max.depth of bulldoing |
P |
mm |
270 |
|
Bucket moving left distance |
Q |
mm |
620 |
|
Bucket moving right distance |
R |
mm |
590 |
|
Performance parameter |
|
Unit |
Numerical |
|
Quality of work |
|
kg |
2950 |
|
Bucket Capacity |
|
m³ |
0.066 |
|
Engine Model name |
|
|
YANMAR 3TNV8OF |
|
Displacement |
|
L(cc) |
1.116 |
|
Output power |
|
KW/rpm |
15 |
|
Working speed(max/min |
|
r/min |
2.4/4.2 |
|
Swing speed |
|
|
9.5 |
|
Swing angle |
|
(°) |
75(55) |
|
Grade ability |
|
%(°) |
58(30) |
|
Ground pressure |
|
kpa |
28.4(0.29) |
|
Max.excavating force |
|
KN |
18.4 |
|
Fuel Tank Capacity |
|
L |
28 |
|
|
|
|
|
|
|
|
|
|
