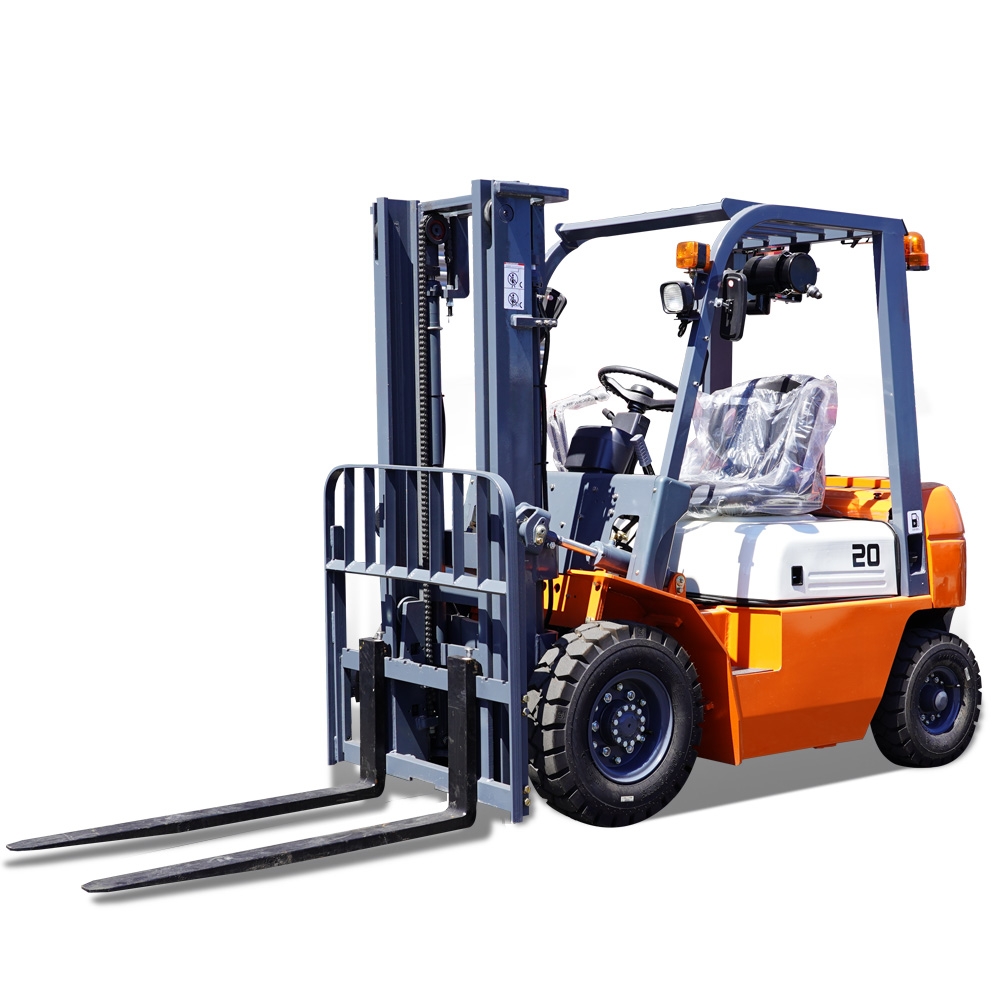

The 2-ton diesel forklift leads logistics to a new level with its excellent performance. It can easily cope with various heavy material handling challenges. It is equipped with an efficient diesel engine to provide lasting power and ensure efficient and stable operation. With its exquisite design and flexible and easy operation, it can easily handle narrow spaces and complex terrains. The special feature is its excellent fuel economy and durability, which effectively reduces operating costs and improves overall work efficiency. It is an ideal choice for warehouse management, production line handling, logistics distribution and other scenarios, helping enterprises upgrade their logistics and create greater value.
Core highlights:
Efficient load: 2000 kg
Lifting height: 3000 MM/4500MM
Minimum turning radius: 2220MM
Maximum climbing angle: 20
|
Characteristic |
Unit |
Parameter |
|
Product Model |
|
CPC-20 |
|
Fuel Type |
|
Diesel Oil |
|
Rated Load |
KG |
2000 |
|
Load Center |
MM |
500 |
|
Wheelbase |
MM |
1600 |
|
Engine Model |
|
New Chai 4D27G31 |
|
Performance |
Unit |
Parameter |
|
Lifting Height |
MM |
3000 |
|
Minimum Turning Radius |
MM |
2220 |
|
Overall Lifting Height Of The Gantry |
MM |
4220 |
|
Maximum Driving Speed At Full Load |
KM/H |
19 |
|
Maximum Lifting Speed At Full Load |
MM/S |
550 |
|
Maximum Traction At Full Load |
KN |
12.3 |
|
Maximum Climbing Angle |
% |
20 |
|
Tire |
Unit |
Parameter |
|
Tire Front Size |
|
7.00-12-12PR |
|
Rear Tire Size |
|
6.00-9-10PR |
|
Track Width (front/rear) |
MM |
970/970 |
|
Front Suspension |
MM |
448 |
|
Size |
Unit |
Parameter |
|
Aspect Ratio (with fork) |
MM |
3523*1160*2140 |
|
Whole Machine Weight |
KG |
3530 |
|
Starting Rated Power |
KW/R.P.M |
36.8 |
|
Transmission |
|
Mechanical/Hydraulic |
|
Working Pressure |
MPA |
18.5 |
