● High performance hydraulic system to ensure smooth operation and improve work efficiency.
● Carefully adjusted engine to provide powerful power and improve construction efficiency.
● Intelligent control system to provide higher construction accuracy and stability
● Multi-functional design,can be equipped with a variety of digging accessories,improve construction flexibility.

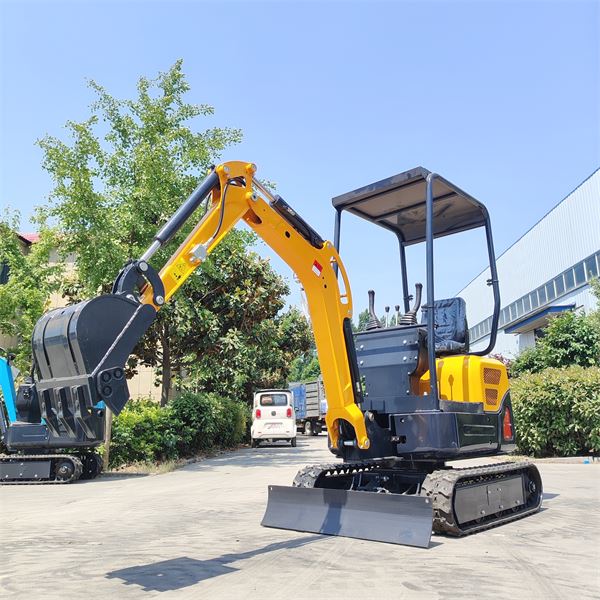

● Compact design of small excavator,adapt to small construction space,improve construction efficiency.
● The excavator has strong structure,strong durability,and reduces maintenance and replacement costs.
|
|
|
|
|
|
|
|
|
|
|
|

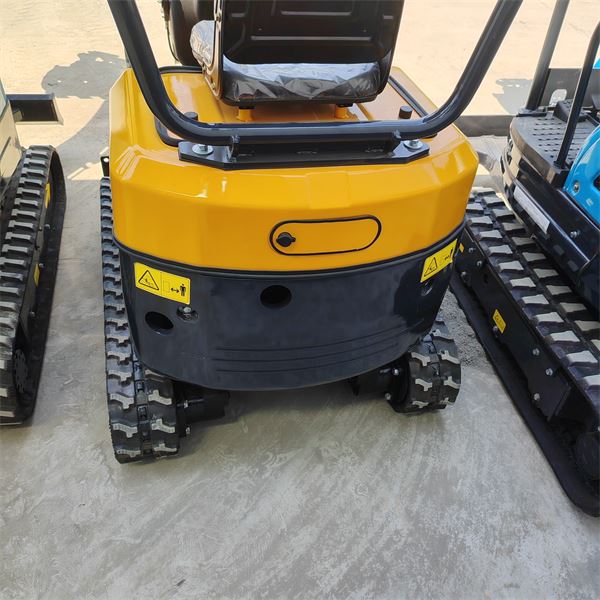

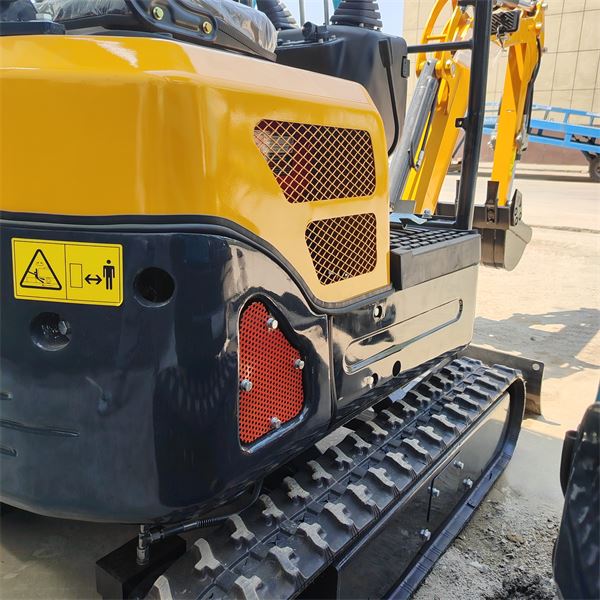

Built-in countereight improvesvehicle stability |

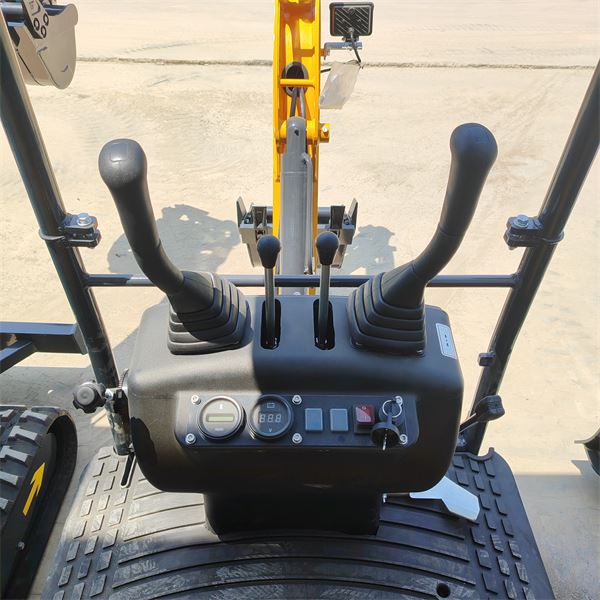

The operating lever is simple and flexibleeasy to operate |

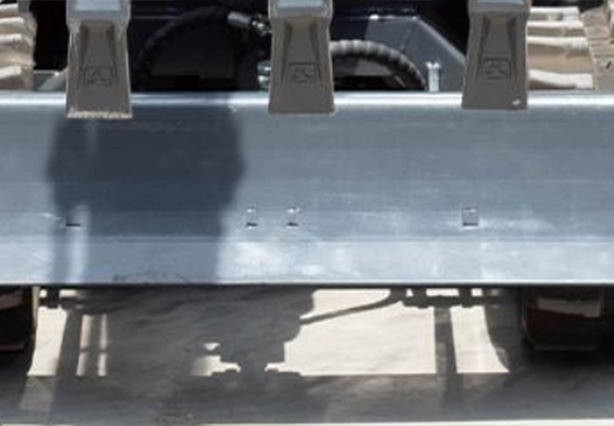

The dozer is widened and thickenedfor durability |

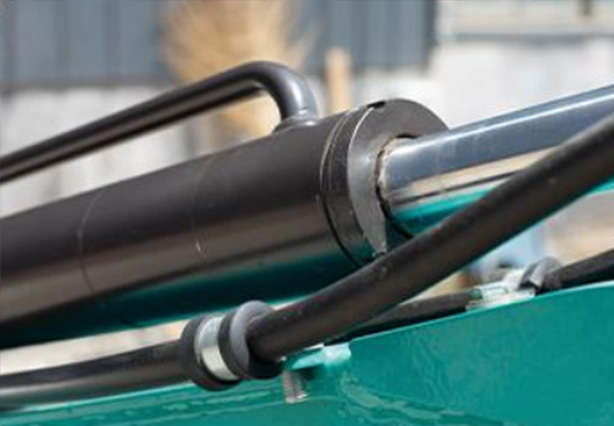

Bold oil cylinder, imported seal,good flexibility and longer service life |
|
Product Information |
||
|
Quality of work |
KG |
1290 |
|
Engine |
|
KOOP/Briggs&Stratton |
|
Rated power |
KW |
8.6 |
|
Working pressure |
Mpa |
16 |
|
Travel speed |
KM/h |
2.2 |
|
Turning speed |
r/min |
13 |
|

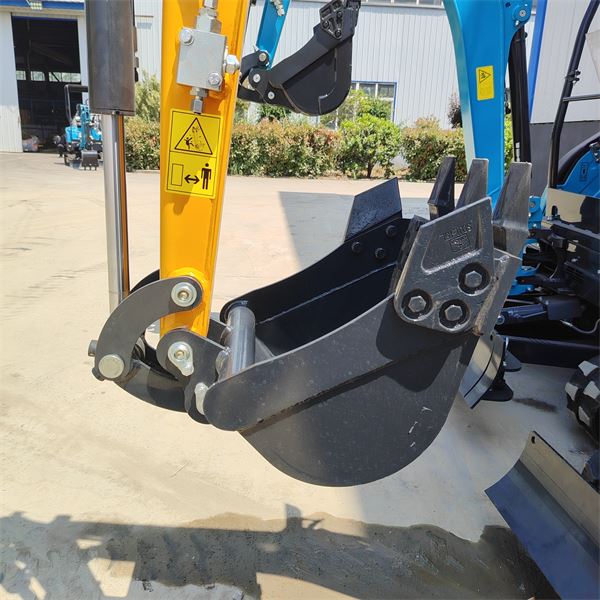

Bucket capacity |
M³ |
0.025 |
|
Fuel tank volume |
L |
10.2 |
|
Climbing ability |
(°） |
30 |
|
Ground specific voltage |
kpa |
20 |
|
Bucket rod digging force |
KN |
4.6 |
|
Bucket digging force |
KN |
7.2 |
|
Overall length |
mm |
2876 |
|
Overall width |
mm |
850 |
|
Total height (seat) |
mm |
1535 |
|
Total height "Carport" |
mm |
2200 |
|
Counterweight ground clearance |
mm |
385 |
|
Minimum ground clearance |
mm |
132 |
|
Tail radius |
mm |
800 |
|
Track grounding length |
mm |
900 |
|
Track length |
mm |
1233 |
|
Gauge |
mm |
670 |
|
Track width |
mm |
840 |
|
Cladding plate width |
mm |
180 |
|

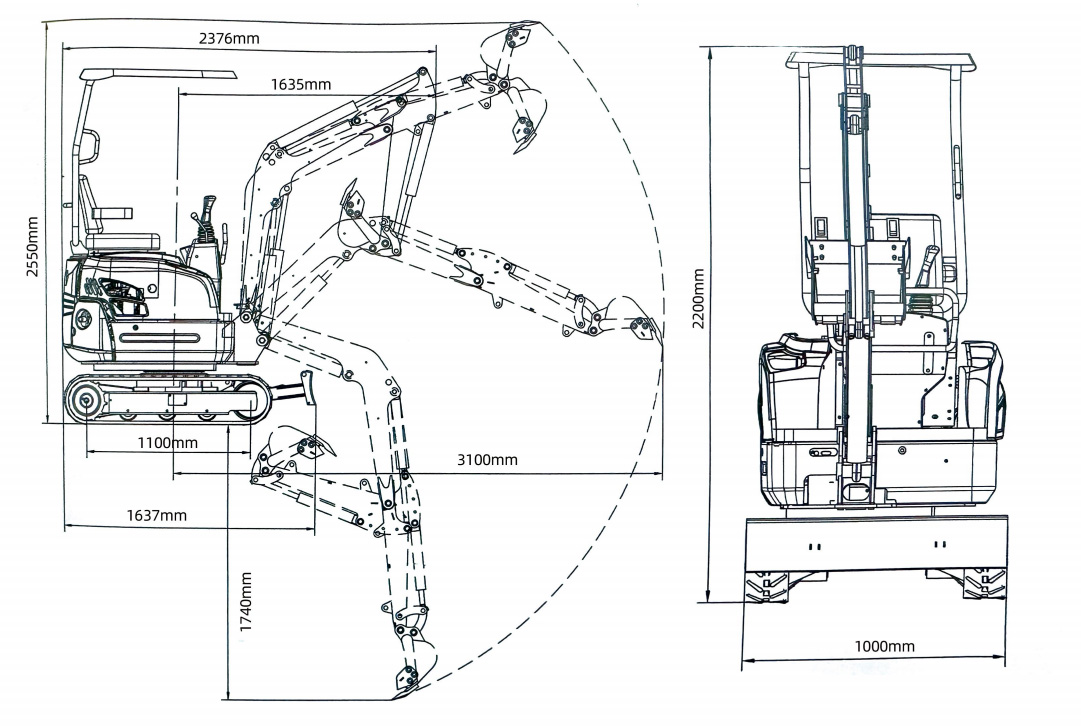

Maximum excavation height |
mm |
2550 |
|
Maximum unloading height |
mm |
1687 |
|
Maximum vertical arm digging depth |
mm |
1626 |
|
Maximum digging distance |
mm |
3077 |
|
Maximum excavation distance in the ground plane |
mm |
2992 |
|
|
|
|
|
|
|
|
|
|
