The BES380A is compact, maneuverable and suitable for operations in narrow spaces. It is equipped with a variety of auxiliary tools and can be used for multiple purposes. It is easy to operate and can turn on the spot. It is highly efficient and energy-saving, has low emissions and is widely used.
◎Meets EPA and Euro 5 emission standards.

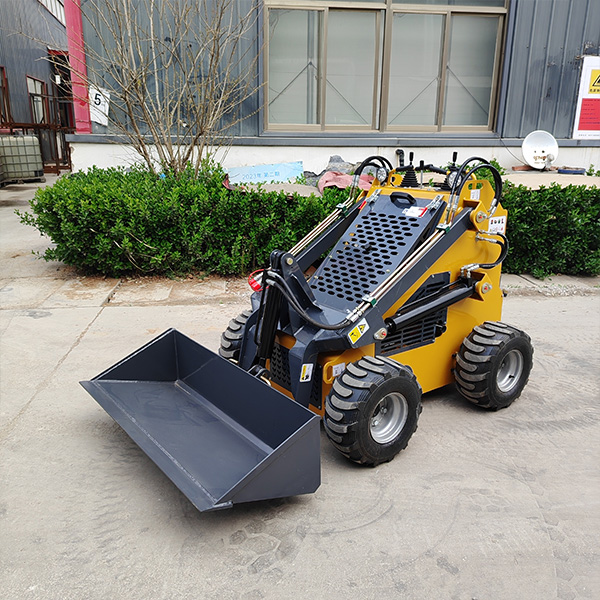

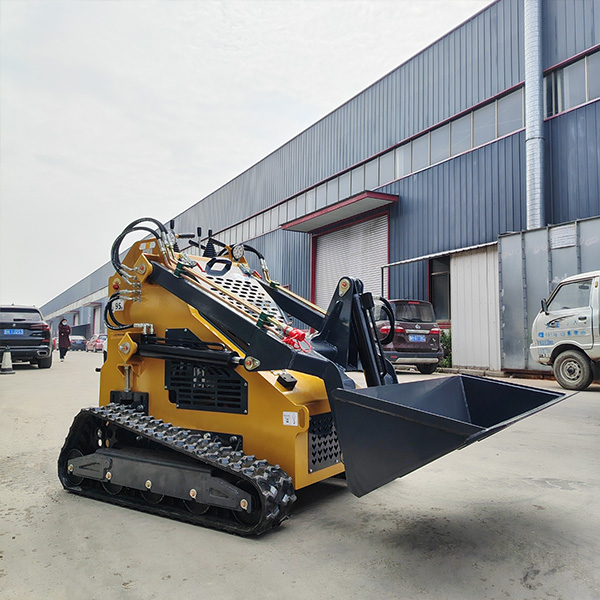

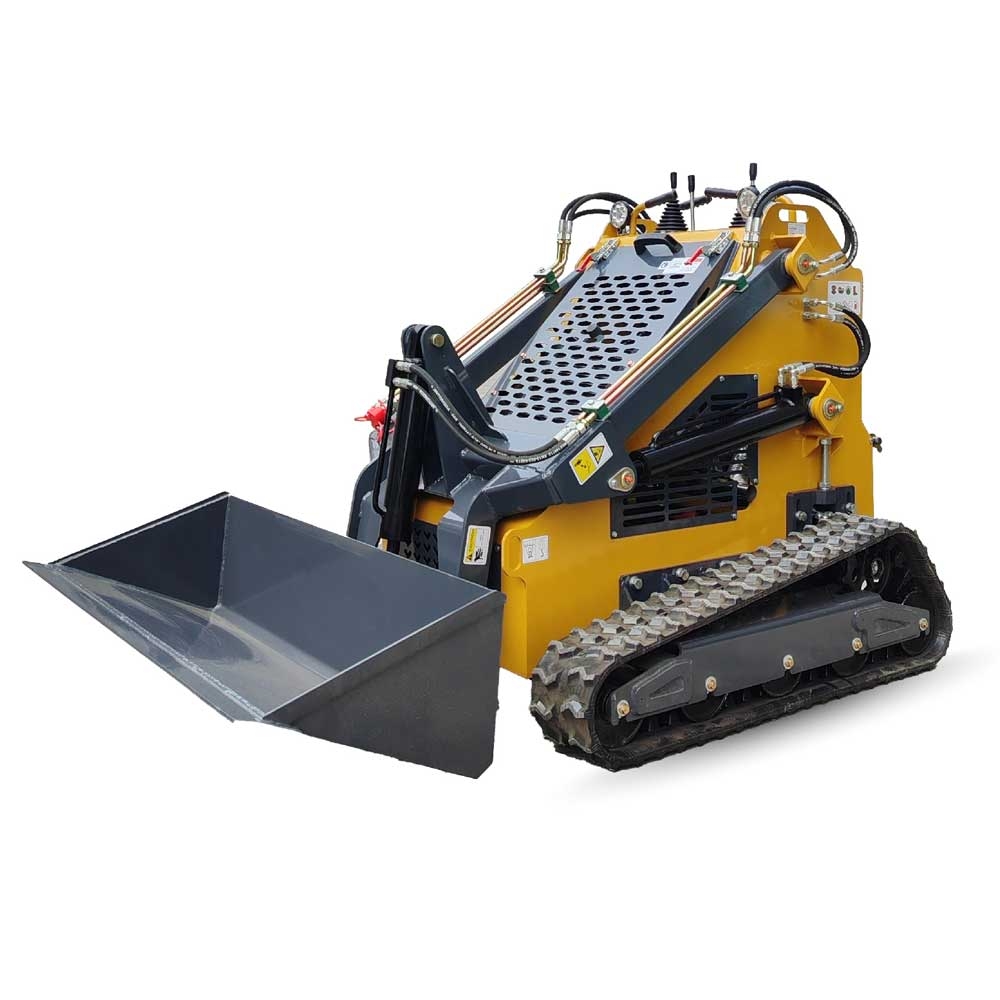

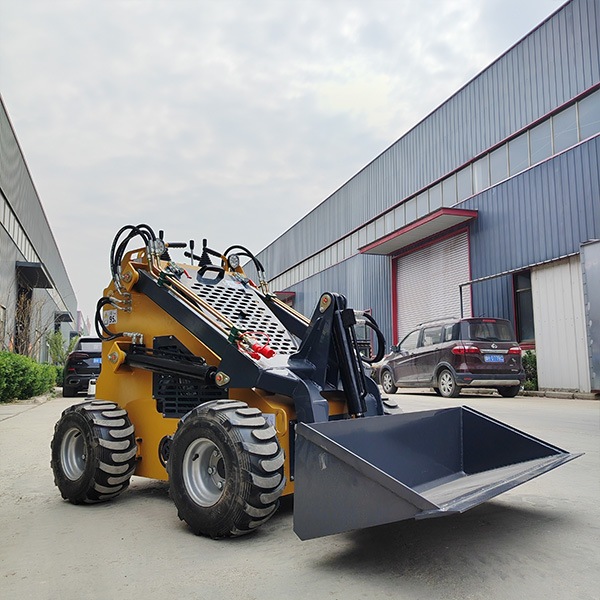

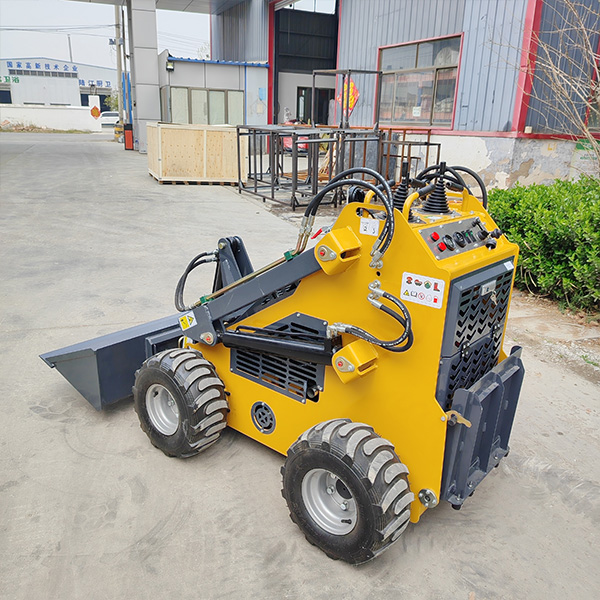

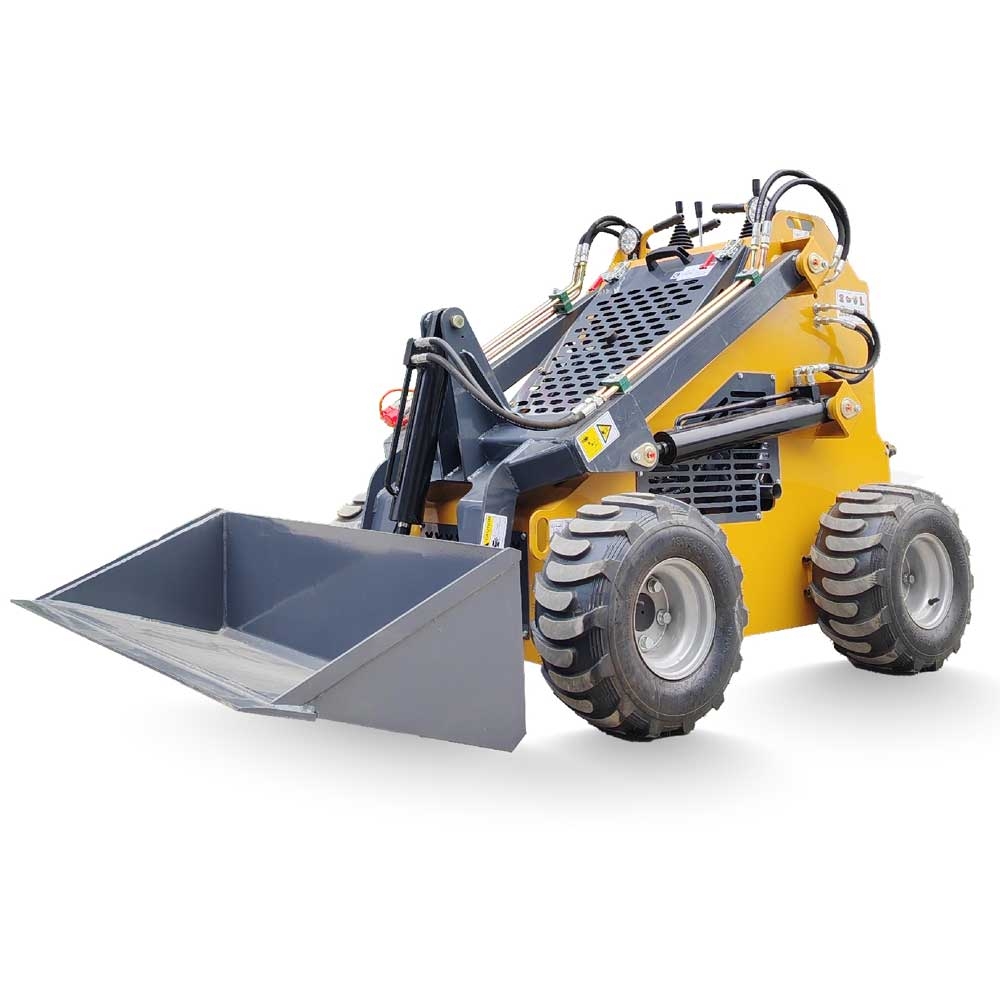

◎Wheeled/tracked optional.
◎Dual pumps,Three valves, Dual motors
◎Free choice of crawler and wheel types
◎Single cylinder 13.5 HP
|
Detail |
||
|
Item |
Metric |
British |
|

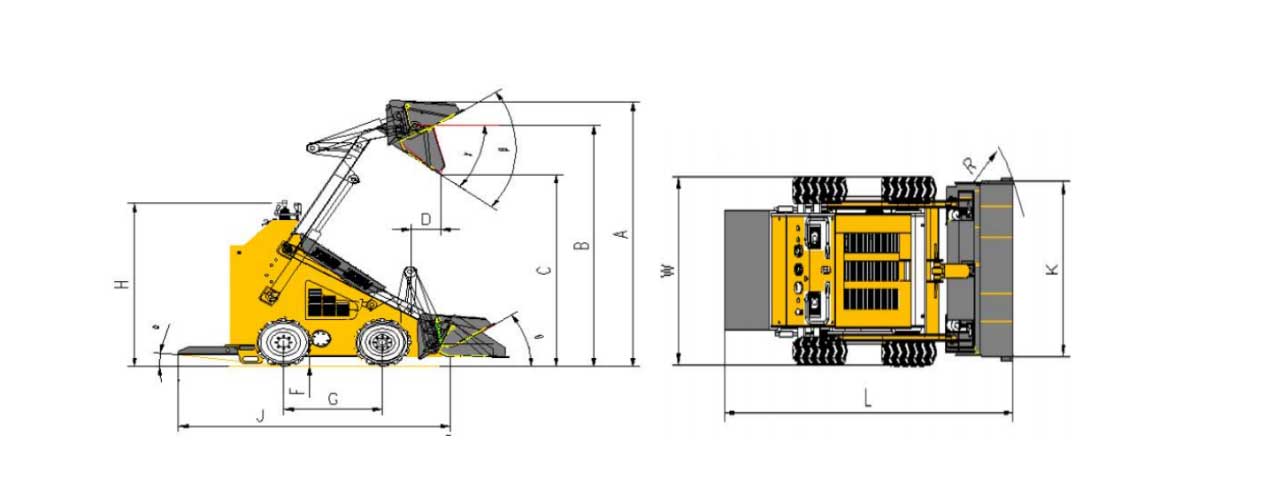

Maximum working height (A) |
2200mm |
86.61inch |
|
Maximum pin height (B) |
1884mm |
74.17inch |
|
Maximum discharge height (C) |
1488mm |
58.58inch |
|
Maximum discharge distance (D) |
348mm |
13.7inch |
|
Bucket swing Angle (β) |
55 ° |
55 ° |
|
Bucket discharge Angle (γ) |
30 ° |
30 ° |
|
Suction Angle ( θ) |
25 ° |
25 ° |
|
Departure Angle ( α) |
11 ° |
11 ° |
|
Total height (H) |
1280mm |
50.39inch |
|
Ground height (F) |
100mm |
3.93inch |
|
Wheelbase (G) |
860mm |
33.85inch |
|
No bucket length (J) |
1680mm |
66.14inch |
|
Total width (W) |
1200mm |
47.24inch |
|
Bucket width (K) |
1190mm |
46.85inch |
|
Total length (L) (with bucket) |
2400mm |
94.48inch |
|
Front turning radius (R) |
1307mm |
51.5inch |
|
Engine |
||
|
Rated power (KW) |
Briggs&Stratton |
|
|
Rated speed (rpm) |
3600 |
|
|
Noise (Db) |
≤95 |
|
|
Fuel tank volume(L) |
28 L |
|
|
Hydraulic tank volume(L) |
20 L |
|
|
Hydraulic system |
||
|
System Pressure (Mpa) |
17MPa=170bar=2465psi |
|
|
Standard flow(L/Min) |
25L/min |
|
|
Traveling pump flow(L/Min) |
22L/min |
36L/min |
|
Replenishment pump flow(L/Min) |
10L/min |
13L/min |
|
Working system(L/Min) |
44L/min |
44L/min |
|
Working hours |
||
|
lift(S) |
4.27 |
|
|
load(S) |
1.34 |
|
|
landing (S) |
3.31 |
|
|
Tyre type |
||
|
Herringbone engineered tire |
18*8.5-8 |
|
|
Performance parameter |
||
|
|
Metric |
British |
|
Carrying capacity |
380Kg |
837.7Lb |
|
Bucket volume |
0.15 m3 |
5.33ft³ |
|
Maximum lifting force |
550KG |
1212.5Lb |
|
Maximum lift |
380 Kg |
837.7Lb |
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|
Machine net weight : |
710Kg |
1565.28Lb |
|
Working weight : |
1100KG |
2425.08Lb |
|
Tractive effort |
No load: 520KG |
Full load: |
|
Angle of climb |
17degree |
|
|
|
|
|
|
|
|
|
|
|
|
|
