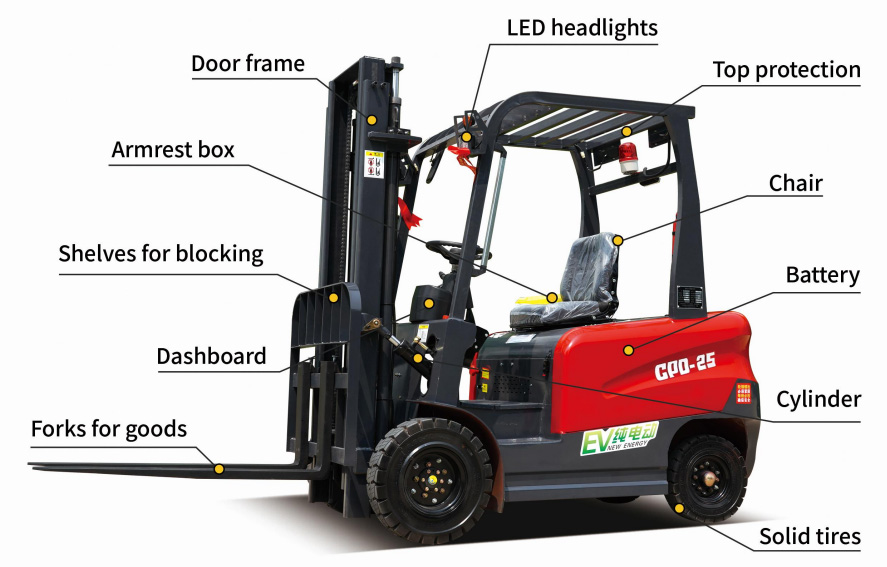

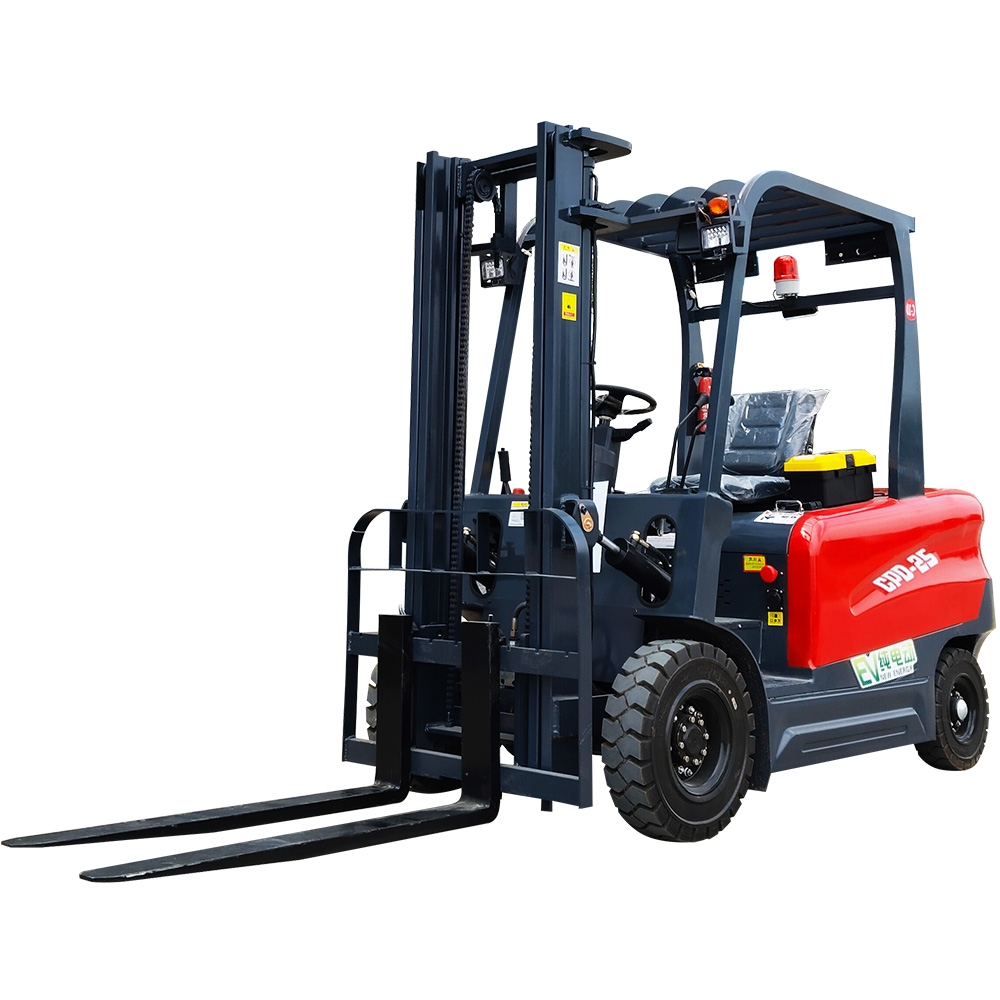

2.5 Ton electric forklift is widely used in warehouses, factories, logistics centers and other places for its strong load-bearing capacity, flexible control performance and environmental protection and energy-saving features. It uses batteries as a power source, achieving the environmental protection goals of zero emissions and low noise. At the same time, its electric drive system provides stable and strong power output, ensuring efficient handling operations.
Core highlights:
Efficient load:2500 kg
Lifting height: 3000MM
Safety frame height: 2150MM
Minimum turning radius: 2420MM
|
Vehicle Parameters |
|||
|
Model |
CPD2.5 |
Tire type (drive/steering) |
Solid rubber tire |
|
Power Type |
Lead acid battery |
Steering Tire Size |
5.00-8 |
|
Operation type |
Riding style |
Driving Tire Size |
6.50-10 |
|
Load(kg) |
2500 |
Front Wheelbase(mm) |
1140 |
|
Load center distance(mm |
500 |
Steering Wheelbase(mm) |
920 |
|
Front Overhang(mm) |
400 |
Drive motor power(kw 60min) |
5 |
|
Wheelbase(mm) |
1680 |
Lifting motor power(kw 15min) |
5 |
|
Mast tilt angle (aβ) |
6/8 |
Battery voltage(V/ah) |
60/70 |
|
Minimum Ground Clearance(mm) |
100 |
Controller |
AC |
|
Maximum lifting height(mm) |
3000 |
Working pressure(mpa) |
15 |
|
Dimension L/W(mm) |
2550*1200 |
Maximum climbing angle(°) |
15 |
|
Mast lifting/unlifting height(mm) |
3550/2080 |
Driving brake type |
Oil brake |
|
Fork size L/W/T(mm) |
1070 |
Parking brake type |
Mechanics |
|
Minimum turning radius(mm) |
2420 |
Drive control type |
Electric |
|
Safety rack height(mm) |
2150 |
Steering type |
Hydraulic steering |
|
Weight (including battery)(kg) |
3200 |
Noise level |
68 |
|
