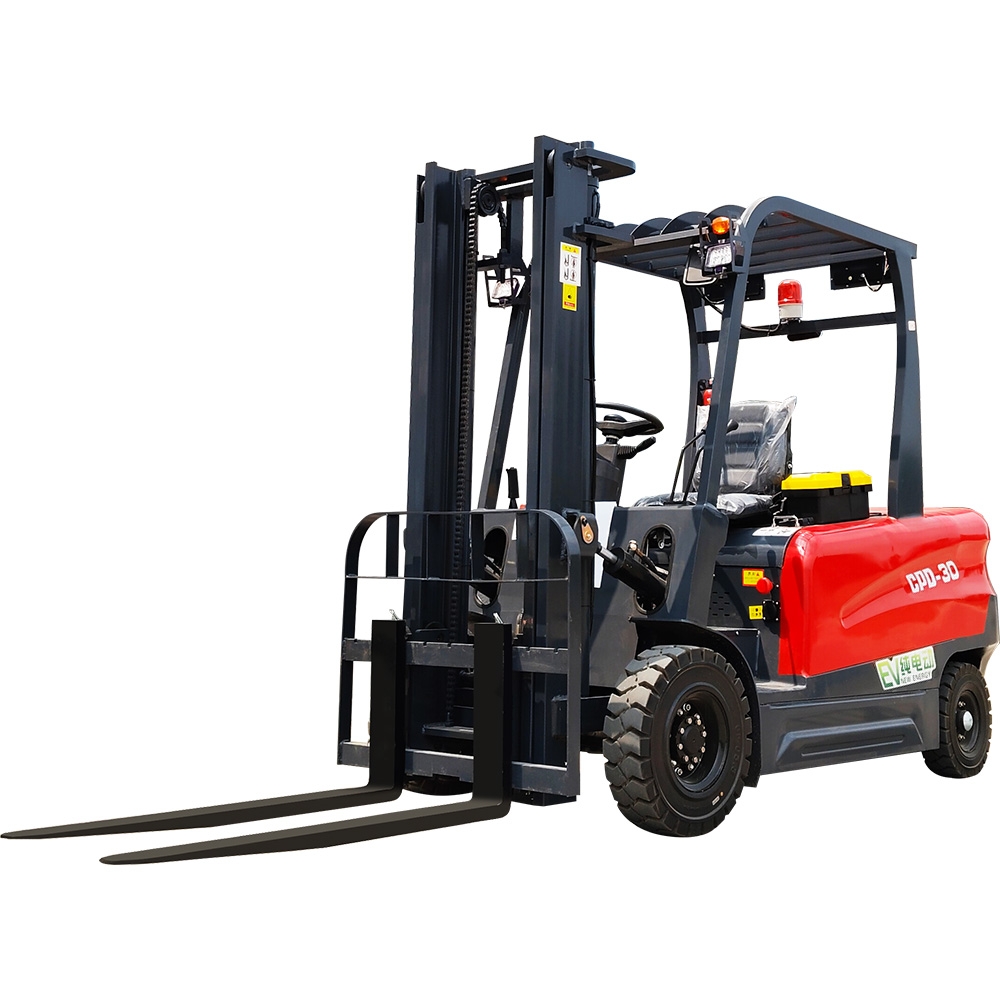

3 ton electric forklift has become an indispensable part of the modern logistics system with its strong load-bearing capacity, flexible handling performance, zero emission, and low noise environmental protection features. The high-strength body and fork design ensure the stability and durability of the forklift during the handling process. It uses electricity as a power source and realizes the handling and stacking of goods through motor drive.
Core highlights:
Efficient load:3000 kg
Lifting height: 3000MM
Safety frame height: 2200MM
Minimum turning radius: 2420MM
|
Vehicle parameters |
|||
|
Model |
CPD3.0 |
Tire type (drive/steering) |
Solid rubber tire |
|
Power Type |
Lead acid battery |
Steering Tire Size |
5.00-8 |
|
Operation type |
Riding style |
Driving Tire Size |
6.50-10 |
|
Load(kg) |
3000 |
Front Wheelbase(mm) |
1140 |
|
Load center distance(mm |
500 |
Steering Wheelbase(mm) |
920 |
|
Front Overhang(mm) |
400 |
Drive motor power(kw 60min) |
10 |
|
Wheelbase(mm) |
1950 |
Lifting motor power(kw 15min) |
7.5 |
|
Mast tilt angle (aβ) |
6/8 |
Battery voltage(V/ah) |
60/70 two-pack |
|
Minimum Ground Clearance(mm) |
100 |
Controller |
AC |
|
Maximum lifting height(mm) |
3000 |
Working pressure(mpa) |
15 |
|
Dimension L/W(mm) |
2830*1200 |
Maximum climbing angle(°) |
15 |
|
Mast lifting/unlifting height(mm) |
3550/2080 |
Driving brake type |
Oil brake |
|
Fork size L/W/T(mm) |
1070 |
Parking brake type |
Mechanics |
|
Minimum turning radius(mm) |
2420 |
Drive control type |
Electric |
|
Safety rack height(mm) |
2200 |
Steering type |
Hydraulic steering |
|
Weight (including battery)(kg) |
3800 |
Noise level |
68 |
|
|
