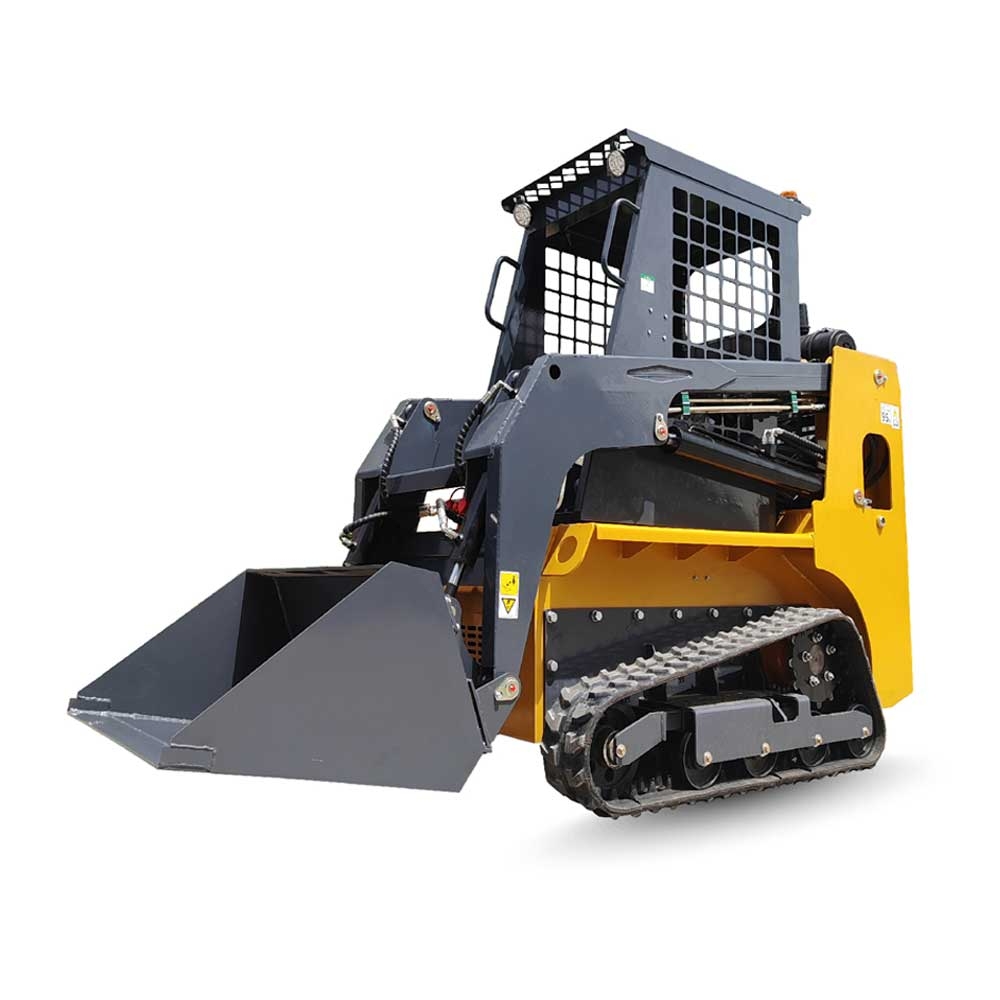

◎This series has a compact design, a small mainframe width, and good passability. It adopts a variable-length working arm. It ensures a strong load-bearing capacity at a small width.
◎The mainframe width is the smallest among all skid steer products. To meet special operation requirements.
◎BES25 products use imported European and American hydraulic components. All controls use a pilot servo system, which is sensitive to control and responds quickly, making it the best choice for operations in narrow spaces.

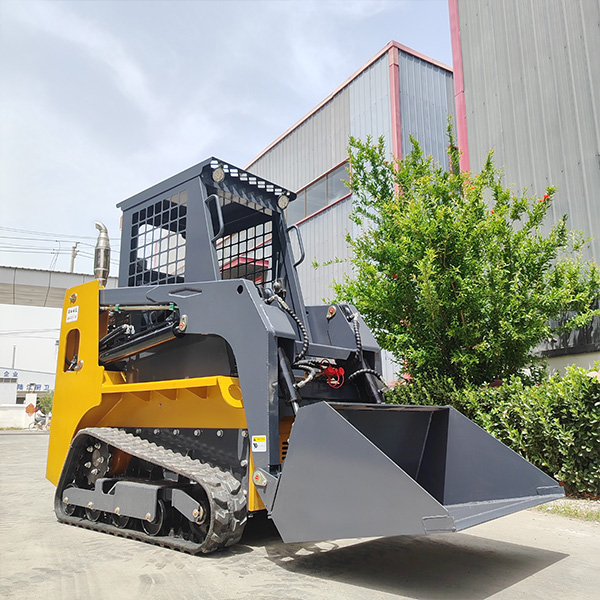

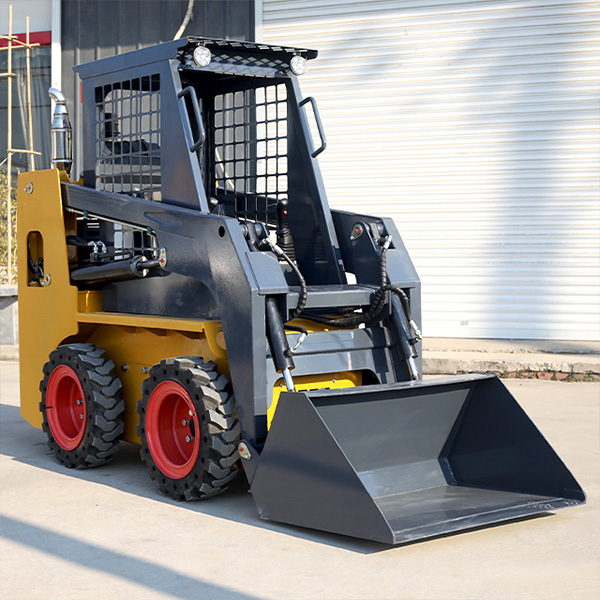

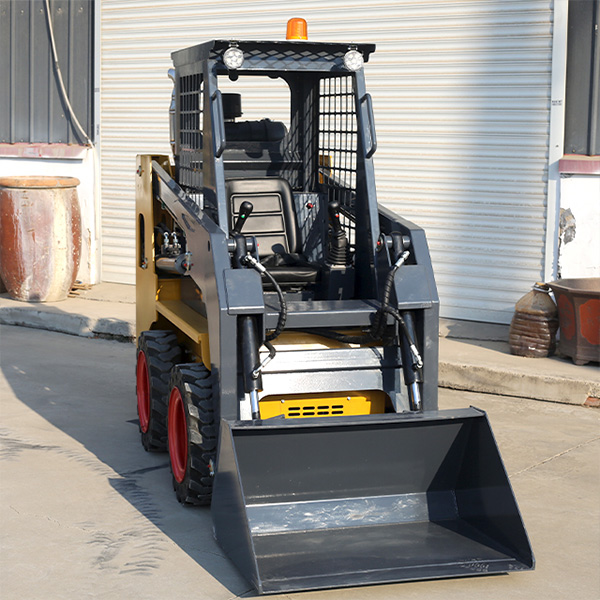

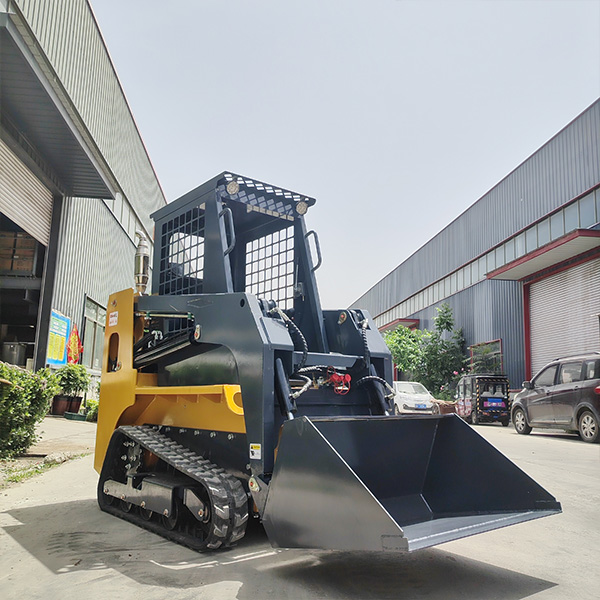

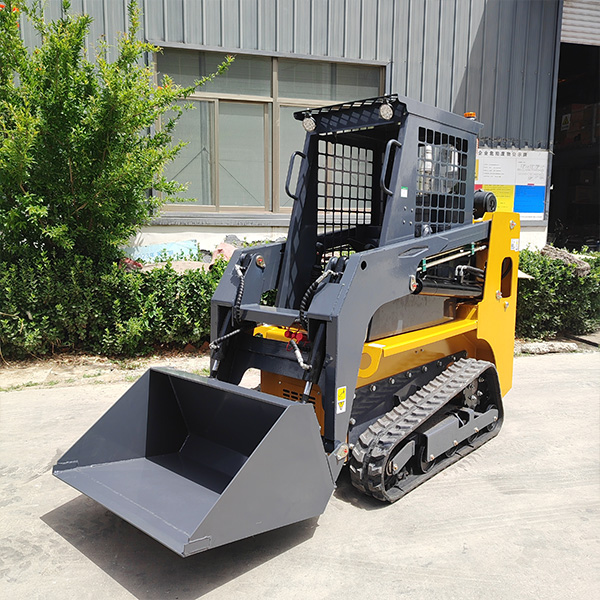

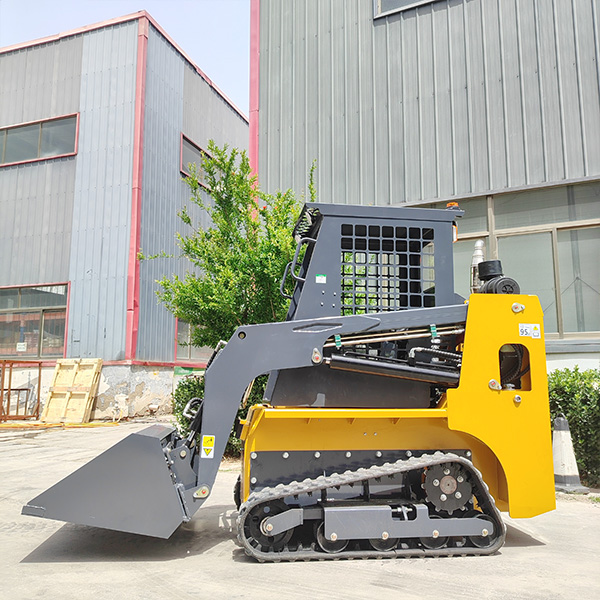

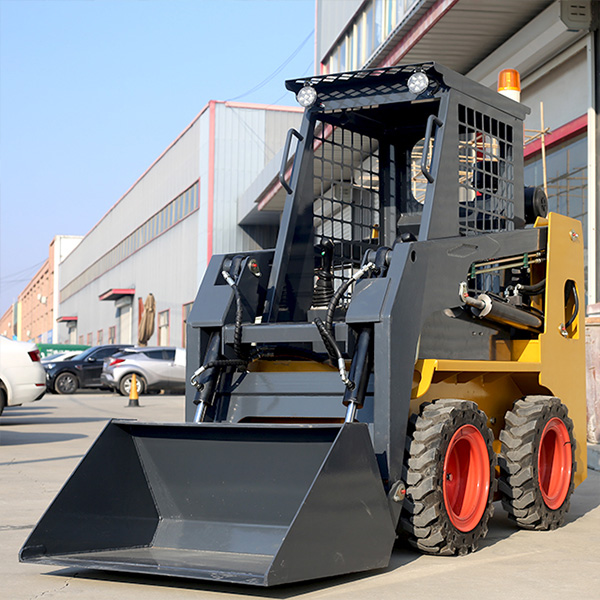

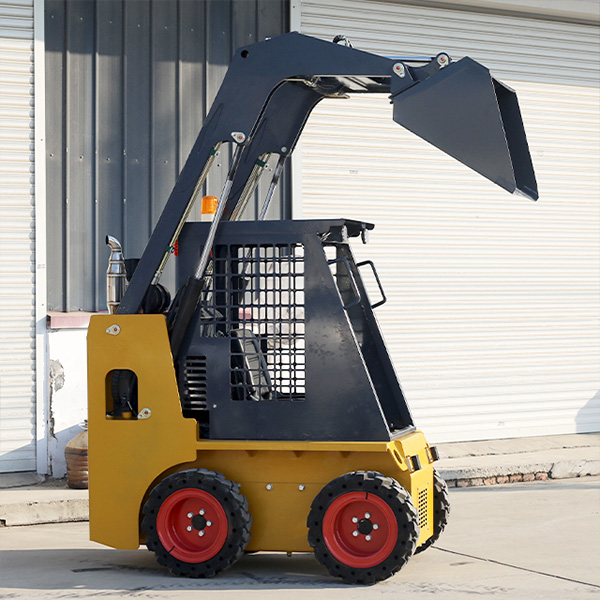

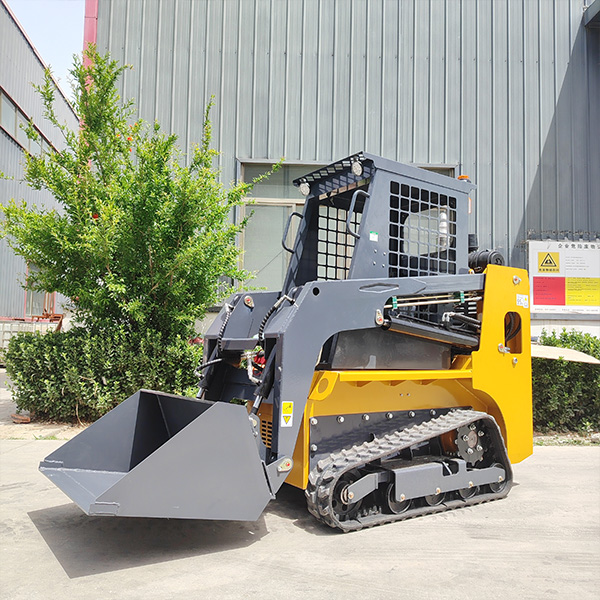

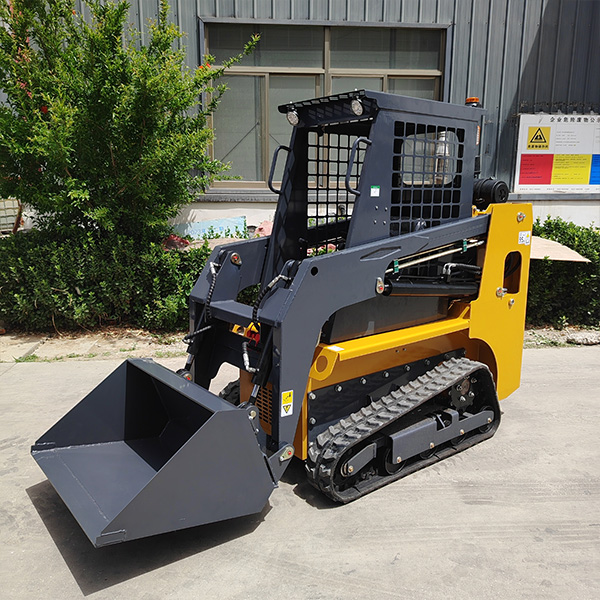

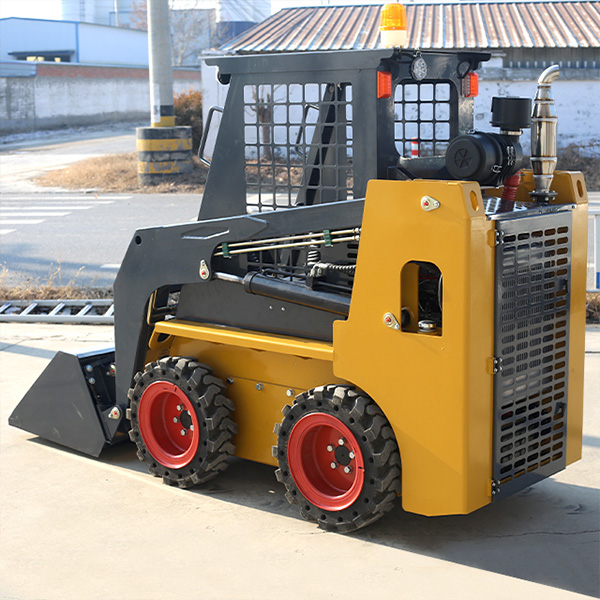

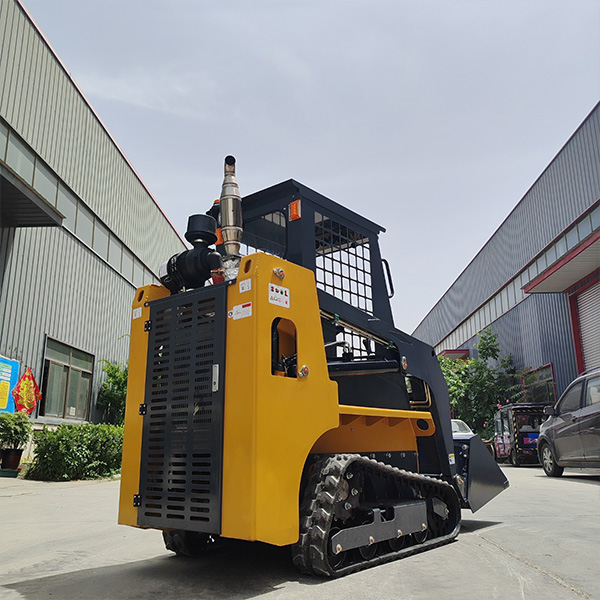

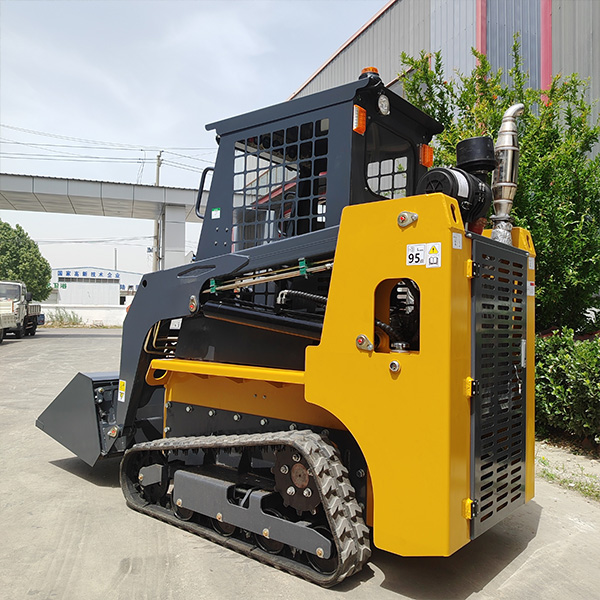

◎Available in tracked and wheeled configurations, customizable colors.
|
Operating load(kg) |
300 |
|
Max Speed(km/h) |
9 |
|
Tire(track)model |
23*8,5-15 |
|
Rated flux(L/min) |
40 |
|
Engine brand: |
Perkins 403J11 |
|
Rated power (Kw) |
18.4 |
|
Fuel tank capacity(L) |
25 |
|
Self weight bucket (kg) |
1550 |
|
Bucket capacity(m3) |
0. 25 |
|
Overall operating height (mm) |
3200 |
|
Height to bucket hinge pin (mm) |
2400 |
|
height to topof cab(mm) |
1800 |
|
Height to bottom of level bucket(mm) |
2400 |
|
Overall length ithout bucket(mm) |
2000 |
|
Overall length with bucket(mm) |
2650 |
|
Dumping angle at maximum height(° ) |
38 |
|
Dumping height (mm) |
1890 |
|
Dumping reach(mm) |
460 |
|
Rollback o bucket on ground(°) |
25 |
|
Rollback of bucket at full height(°) |
98 |
|
Wheelbase(mm) |
870 |
|
Ground clearance(mm) |
120 |
|
Angleof departure(°) |
28 |
|
Front turning radins without bucket(mm) |
970 |
|
Front tuning radius(mm) |
1550 |
|
Rear tuning radius(mm) |
1150 |
|
Rear axle to bumper(mm) |
600 |
|
Tread width,enterline to centerline (mm) |
710 |
|
Width (mm) |
1000 |
|
Bucket width(mm) |
915 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
