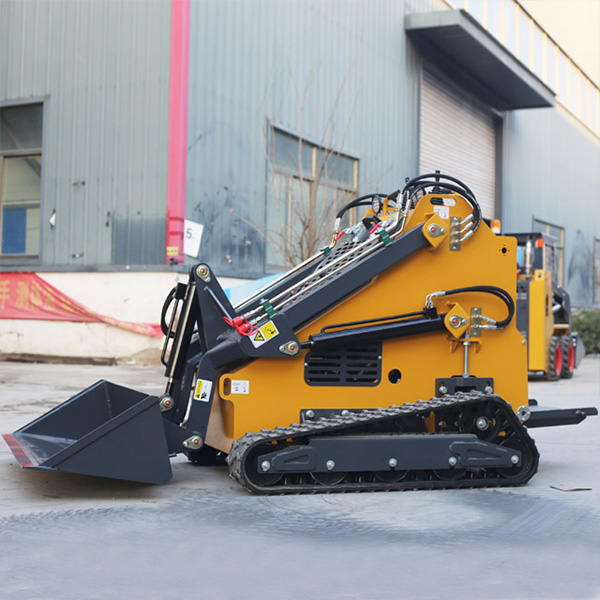

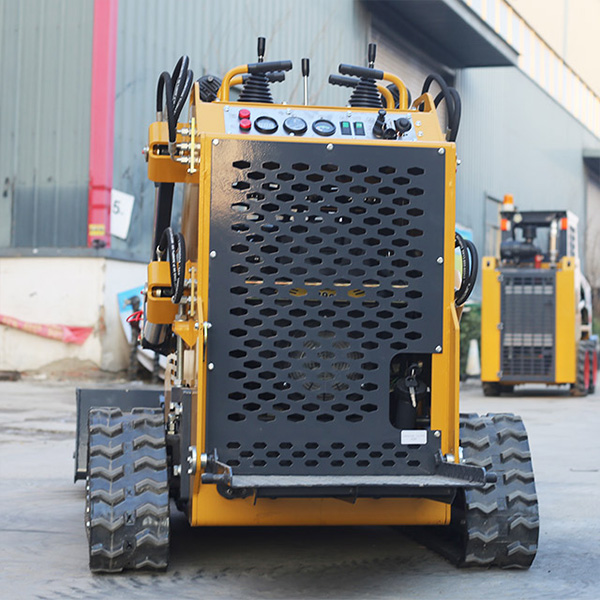

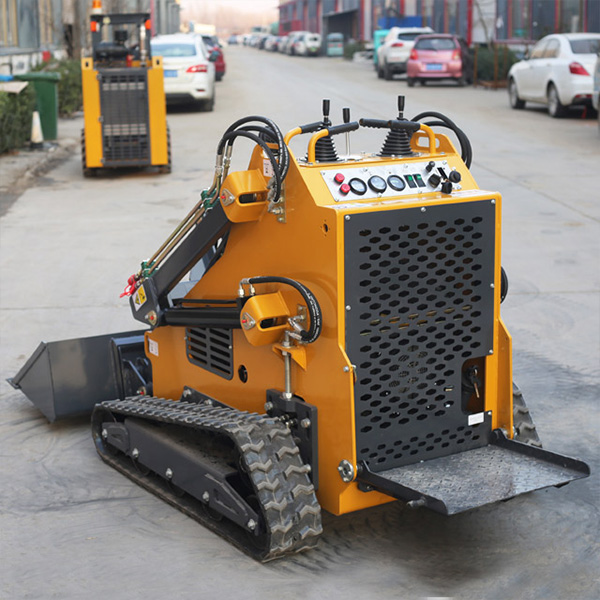

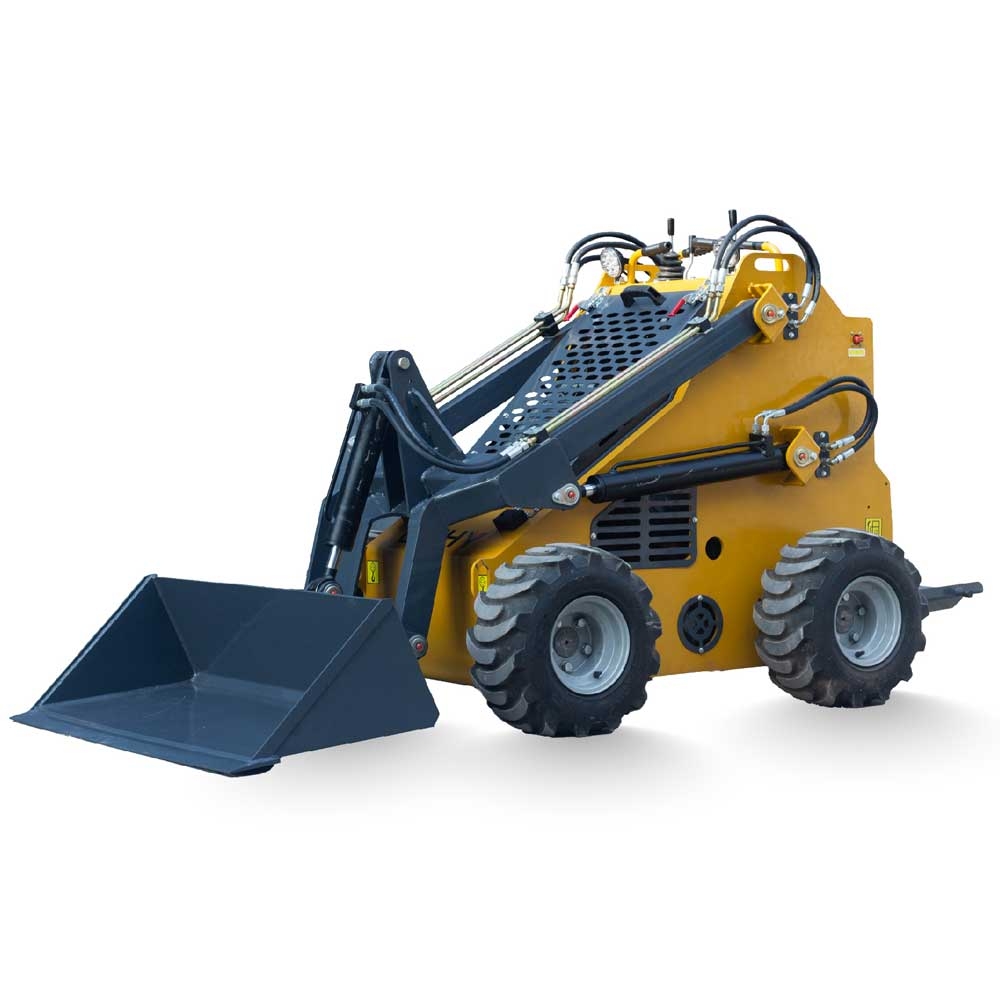

The BES380 is compact, maneuverable and suitable for operations in narrow spaces. It is equipped with a variety of auxiliary tools and can be used for multiple purposes. It is easy to operate and can turn on the spot. It is highly efficient and energy-saving, has low emissions and is widely used.
◎Meets EPA and Euro 5 emission standards.
◎Dual pumps,Three valves, Dual motors

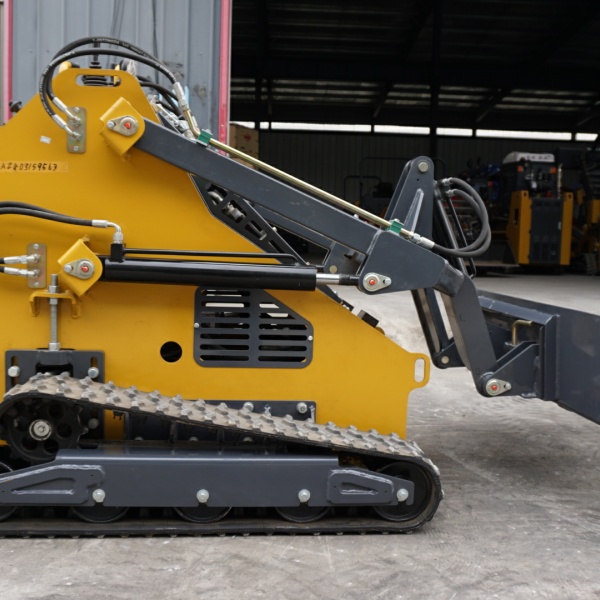

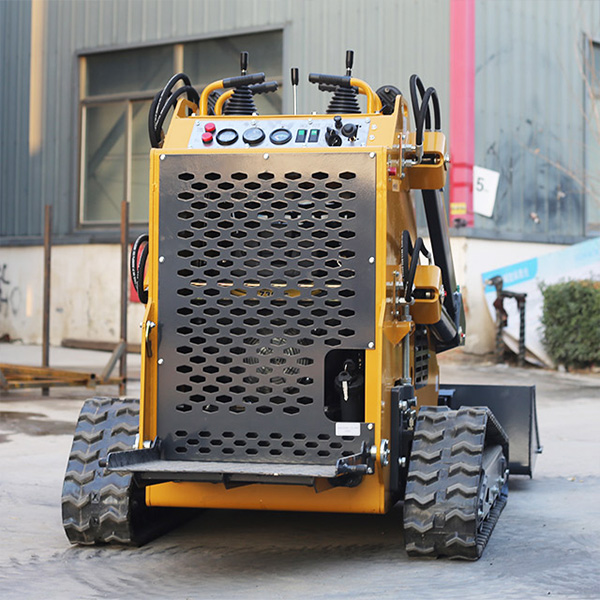

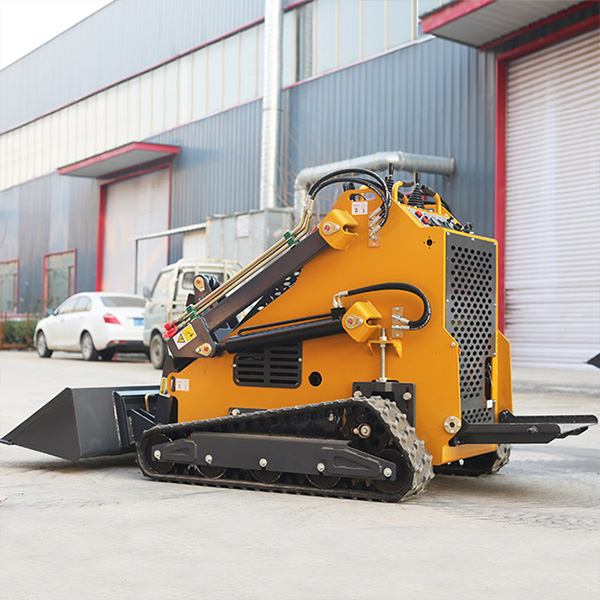

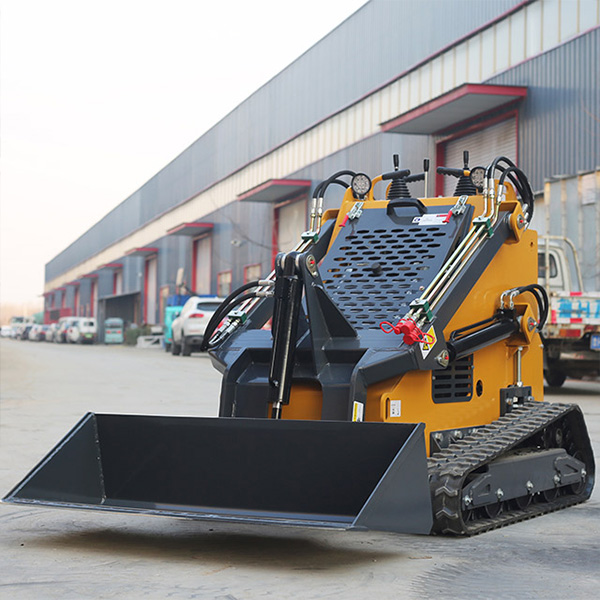

◎Free choice of crawler and wheel types
◎Twin Cylinder 23HP
|
Detail |
||
|
Item |
Metric system |
British system |
|
Maximum working height |
2200mm |
86.61inch |
|
Maximum pin height |
1884mm |
74.17inch |
|
Maximum discharge height |
1488mm |
58.58inch |
|
Maximum discharge distance |
348mm |
13.7inch |
|
Bucket swing Angle |
55 ° |
55 ° |
|
Bucket discharge Angle |
30 ° |
30 ° |
|
Suction Angle |
25 ° |
25 ° |
|
Departure Angle |
11 ° |
11 ° |
|
Total height |
1280mm |
50.39inch |
|
Ground height |
100mm |
3.93inch |
|
Wheelbase |
860mm |
33.85inch |
|
No bucket length |
1780mm |
70.07inch |
|
Total width |
1200mm |
47.24inch |
|
Bucket width |
1190mm |
46.85inch |
|
Total length (with bucket) |
2500mm |
98.42inch |
|
Front turning radius |
1307mm |
51.5inch |
|
Engine |
||
|
Rated power (KW) |
19.2KW(26HP) (Runtong brand) |
|
|
Rated speed (rpm) |
3600 |
|
|
Noise (Db) |
≤95 |
|
|
Fuel tank volume(L) |
28 L |
|
|
Hydraulic tank volume(L) |
20 L |
|
|
Hydraulic system |
||
|
System Pressure (Mpa) |
17MPa=170bar=2465psi |
|
|
Standard flow(L/Min) |
25L/min |
|
|
Traveling pump flow(L/Min) |
22L/min |
36L/min |
|
Replenishment pump flow(L/Min) |
10L/min |
13L/min |
|
Working system(L/Min) |
44L/min |
44L/min |
|
Working hours |
||
|
lift(S) |
4.27 |
|
|
load(S) |
1.34 |
|
|
landing (S) |
3.31 |
|
|

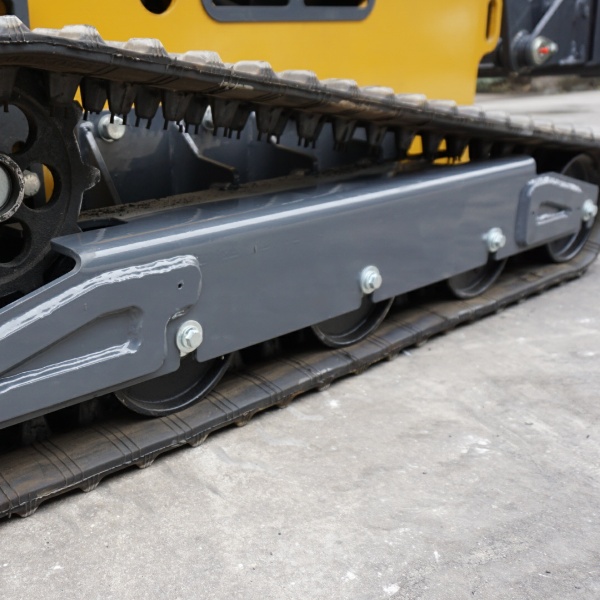

Crawler walking |
||
|
Track material |
Engineering rubber track |
|
|
Performance parameter |
||
|
Carrying capacity |
380Kg |
837.7Lb |
|
Bucket volume |
0.15 m3 |
5.33ft³ |
|
Maximum lifting force |
550KG |
1212.5Lb |
|
Maximum lift |
380 Kg |
837.7Lb |
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|
Machine net weight : |
910Kg |
2006.21Lb |
|
Working weight : |
1290KG |
2843.96Lb |
|
Tractive effort |
No load: 520KG |
Full load: |
|
Angle of climb |
20degree |
|
|
Service time (full oil) |
3-4h |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
